Sowa Tool
102385

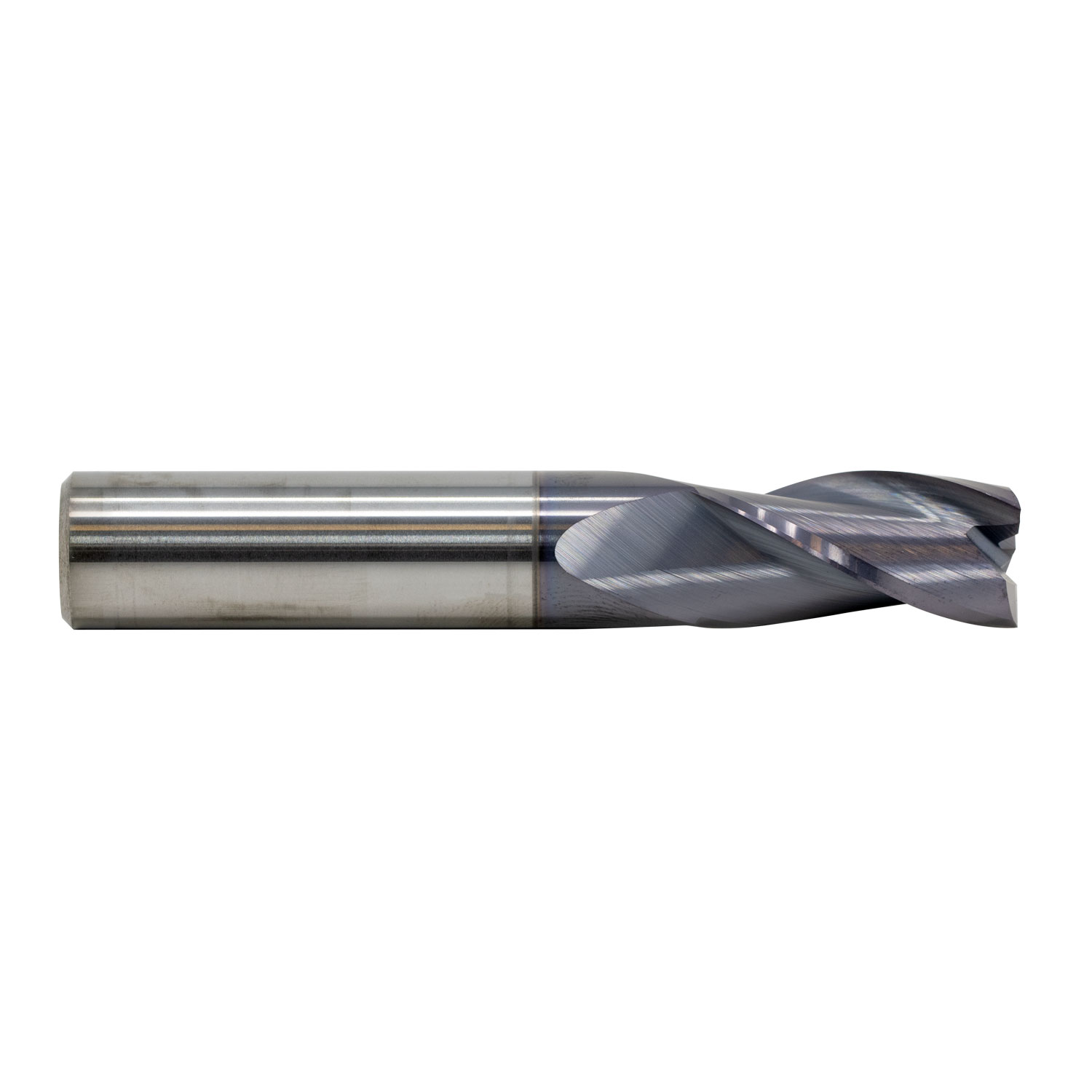

9/16 3-Flute Soild Carbide End Mill TiAlN Coated
Specifications
| Shank Size (Inch) | 9/16 |
|---|---|
| Overall Length (Inch) | 3-1/2 |
| Length Of Cut (Inch) | 1-1/8 |
| Number Of Flutes | 3 |
| Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Double Ended | No |
| Cutting Direction | Right |
| Diameter (Inch) | 9/16 |
| Unit Of Measure | Fractional |
| Helix Angle | 30 degrees |
| Length Type | Regular |
| Short Description | • Brand: GS Tooling<br>• Length Type : Regular |
| Center Cutting | Yes |
| Long Description | • Mill Diameter (Inch): 9/16"<br>• Number of Flutes: 3<br>• Material: Solid Carbide<br>• Length of Cut (Inch): 1-1/8"<br>• Shank Diameter (Inch): 9/16"<br>• Finish/Coating: TiAlN<br>• Single or Double End: Single<br>• Center Cutting: Yes<br>• Overall Length (Inch): 3-1/2"<br>• Flute Direction: Right<br>• Cutting Direction: Right<br>• Variable Helix: No<br>• Helix Angle: 30<br>3 flute carbide end mills offer maximum chip clearance therefore reducing chip packing. For: End milling, Slotting, Sinking On: Steels, Cast Iron, Aluminum, Copper, Brass, Plastics, and Abrasive type materials |
| Flute Direction | Right |
| Variable Helix | No |
| Product Type | Industrial Supplies |
| Shank Diameter (Inch) | 9/16" |
| Unit of Measure | Fractional |
| Mill Diameter (Inch) | 9/16" |
