Sowa Tool
102418

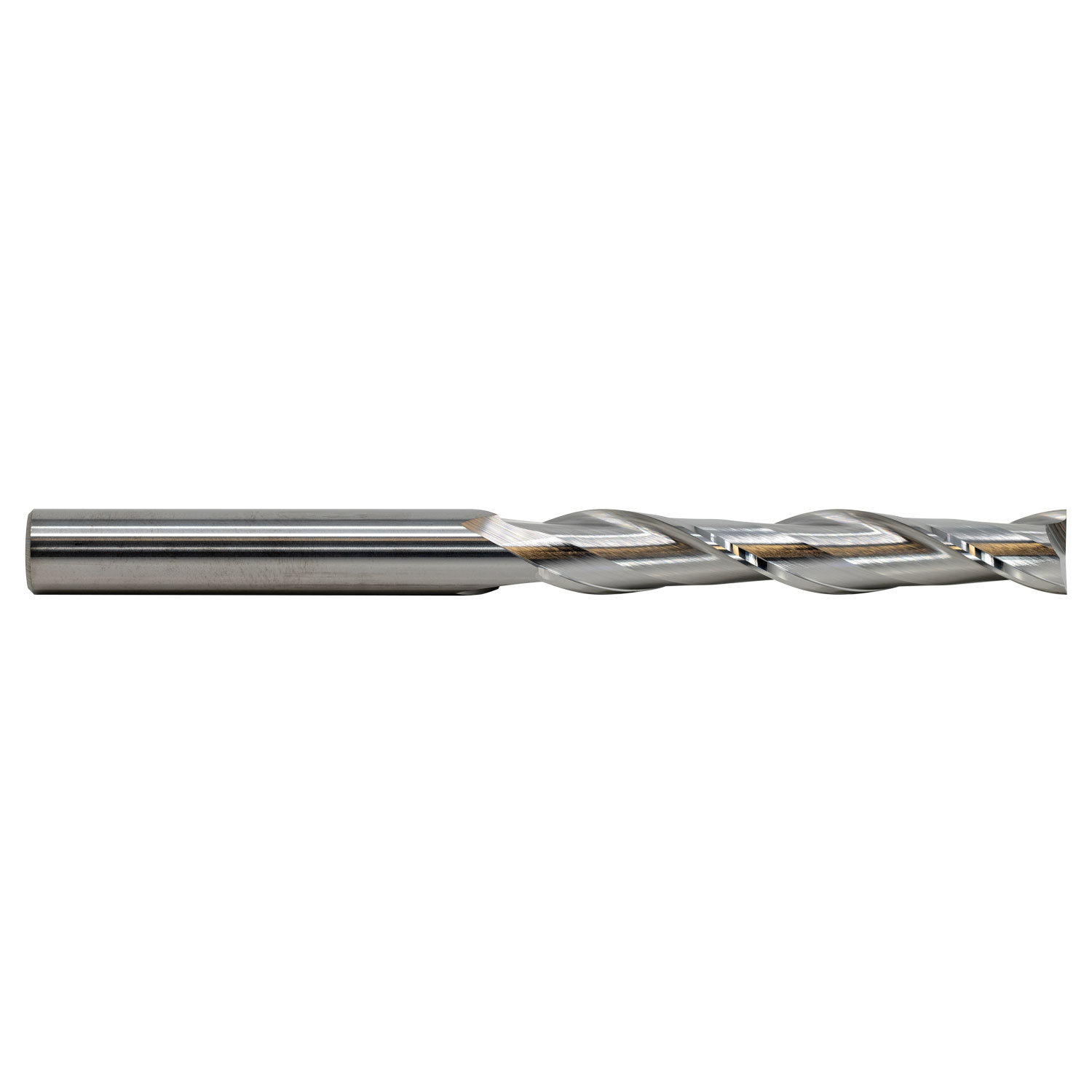

1" Diameter x 1" Shank 2-Flute Extra Long Length Blue Series Carbide End Mill
Specifications
| Shank Size (Inch) | 1 |
|---|---|
| Overall Length (Inch) | 6 |
| Length Of Cut (Inch) | 3 |
| Number Of Flutes | 2 |
| Material | Solid Carbide |
| Coating/Finish | Bright |
| Double Ended | No |
| Cutting Direction | Right |
| Diameter (Inch) | 1 |
| Unit Of Measure | Fractional |
| Helix Angle | 30 degrees |
| Length Type | Extra Long |
| Short Description | • Brand: GS Tooling<br>• Length Type : Extra Long |
| Center Cutting | Yes |
| Long Description | • Mill Diameter (Inch): 1"<br>• Number of Flutes: 2<br>• Material: Solid Carbide<br>• Length of Cut (Inch): 3"<br>• Shank Diameter (Inch): 1"<br>• Finish/Coating: Bright<br>• Single or Double End: Single<br>• Center Cutting: Yes<br>• Overall Length (Inch): 6"<br>• Flute Direction: Right<br>• Cutting Direction: Right<br>• Variable Helix: No<br>• Helix Angle: 30<br>Extra Long Length End mills combine added flute and overall length for greater reach when deep slotting or milling. These end mills have the capability to mill much thicker material in a single pass, thereby eliminating the interrupted cut that may be present with regular length end mills |
| Flute Direction | Right |
| Variable Helix | No |
| Product Type | Industrial Supplies |
| Shank Diameter (Inch) | 1" |
| Unit of Measure | Fractional |
| Mill Diameter (Inch) | 1" |
