Sowa Tool
102607

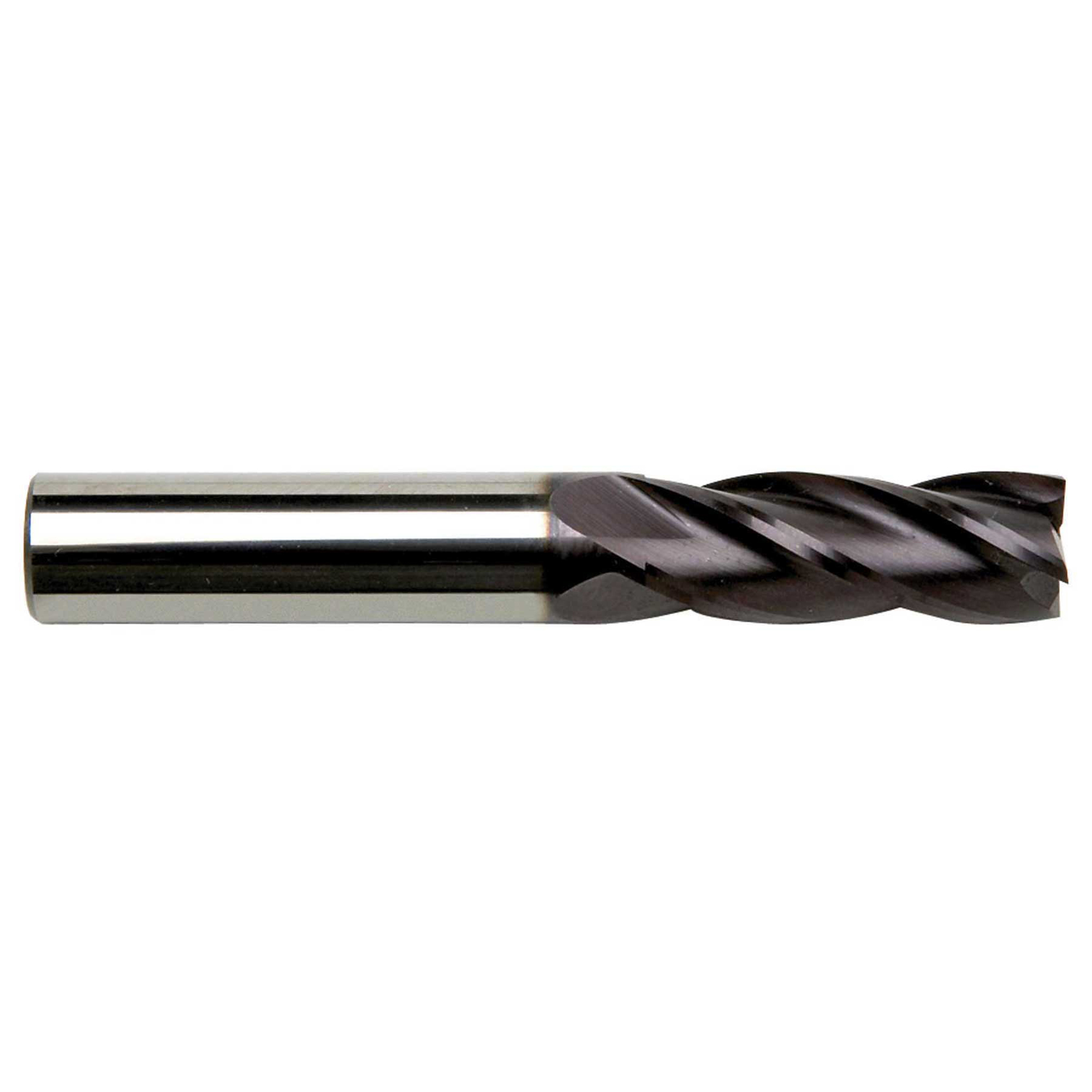

2.5mm 4-Flute Soild Carbide End Mill TiAlN Coated
Specifications
| Length Of Cut (Metric) | 8 |
|---|---|
| Overall Length (Metric) | 39 |
| Number Of Flutes | 4 |
| Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Double Ended | No |
| Diameter (Metric) | 2.5 |
| Shank Size (Metric) | 3 |
| Cutting Direction | Right |
| Unit Of Measure | Metric |
| Helix Angle | 30 degrees |
| Length Type | Regular |
| Short Description | • Brand: GS Tooling<br>• Length Type : Regular |
| Center Cutting | Yes |
| Long Description | • Mill Diameter (mm): 2.5<br>• Number of Flutes: 4<br>• Material: Solid Carbide<br>• Length of Cut (mm): 8<br>• Shank Diameter (mm): 3<br>• Finish/Coating: TiAlN<br>• Single or Double End: Single<br>• Center Cutting: Yes<br>• Overall Length (mm): 39<br>• Flute Direction: Right<br>• Cutting Direction: Right<br>• Variable Helix: No<br>• Helix Angle: 30<br>The industry standard for a variety of applications including profile milling, slot milling and production milling in a variety of materials. TiAlN coated for increased speed and feed capabilities and enhanced tool life. |
| Flute Direction | Right |
| Variable Helix | No |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Mill Diameter (Metric) | 2.5 |
