Sowa Tool
102610

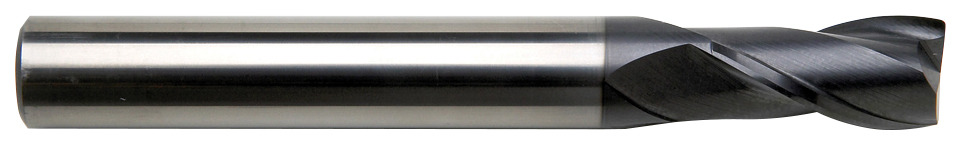

3/16" Diameter x 3/16" Shank 0.020" Radius 2-Flute Corner Radius Typhoon Red Series Carbide End Mill
Specifications
| Length Of Cut (Inch) | 5/8" |
|---|---|
| Material | Solid Carbide |
| Corner Radius (Inch) | 0.02 |
| Overall Length (Inch) | 2" |
| Shank Diameter (Inch) | 3/16" |
| Coating/Finish | Modified AlTiN |
| Number Of Flutes | 2 |
| Cutting Direction | Right |
| Short Description | • Brand: GS Tooling<br>• Center Cutting : Yes<br>• Flute Direction : Right<br>• Length Type : Regular |
| Long Description | • Mill Diameter (Inch): 3/16"<br>• End Type: Corner Radius<br>• Corner Radius (Decimal Inch): 0.02<br>• Number of Flutes: 2<br>• Material: Solid Carbide<br>• Finish/Coating: Modified AlTiN<br>• Length of Cut (Inch): 5/8"<br>• Shank Diameter (Inch): 3/16"<br>• Overall Length (Inch): 2"<br>• Cutting Direction: Right<br>• Variable Index: No<br>Typhoon end mills with corner radius allow more strength and minimize chipping on the corners in demanding applications. |
| End Type | Corner Radius |
| Mill Diameter (Inch) | 3/16" |
