Sowa Tool
102860

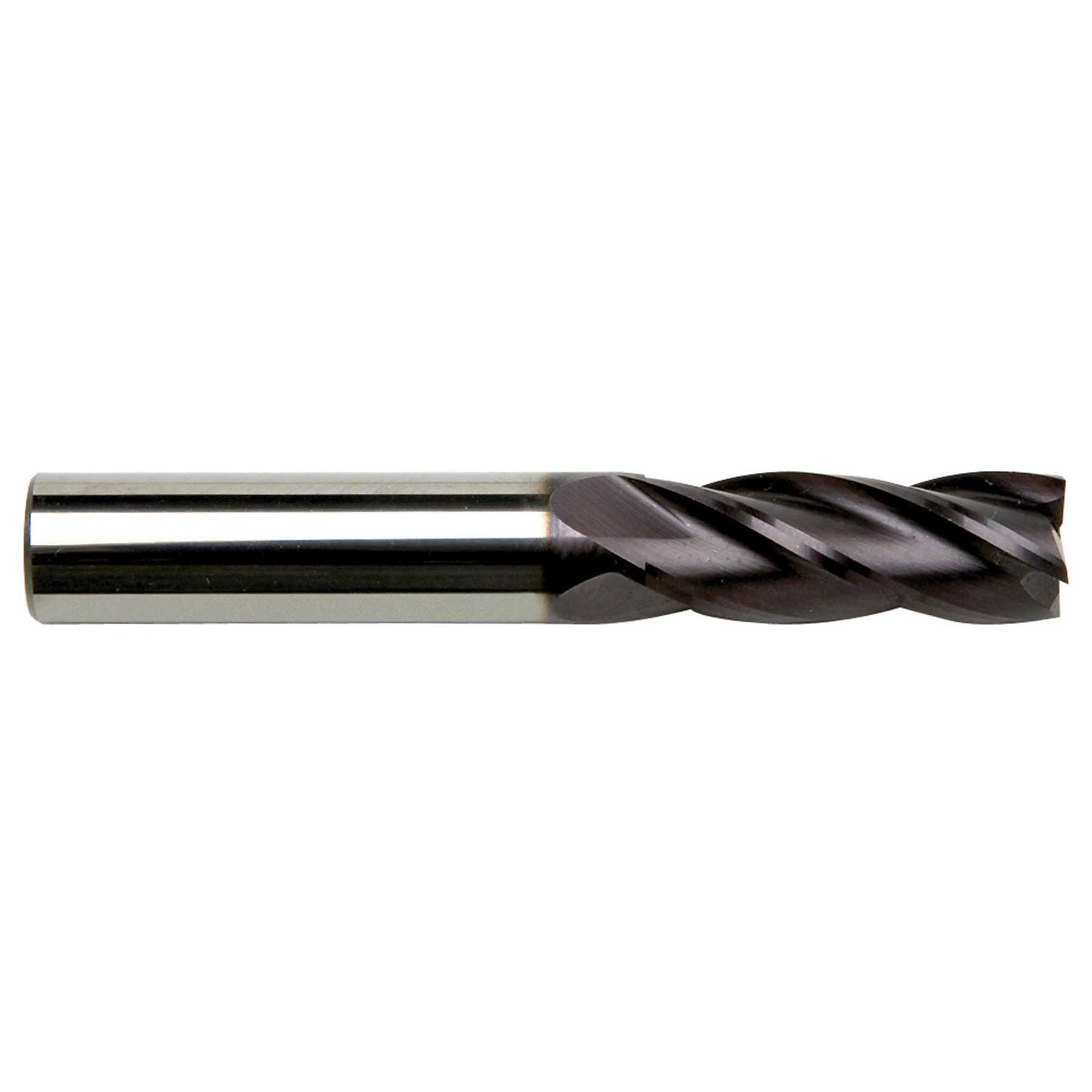

1" Diameter x 1" Shank 4-Flute Regular Length Yellow Series Carbide End Mill
Specifications
| Shank Size (Inch) | 1 |
|---|---|
| Overall Length (Inch) | 4 |
| Length Of Cut (Inch) | 1-1/2 |
| Number Of Flutes | 4 |
| Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Double Ended | No |
| Cutting Direction | Right |
| Diameter (Inch) | 1 |
| Unit Of Measure | Fractional |
| Helix Angle | 30 degrees |
| Length Type | Regular |
| Short Description | • Brand: GS Tooling<br>• Length Type : Regular |
| Center Cutting | Yes |
| Long Description | • Mill Diameter (Inch): 1"<br>• Number of Flutes: 4<br>• Material: Solid Carbide<br>• Length of Cut (Inch): 1-1/2"<br>• Shank Diameter (Inch): 1"<br>• Finish/Coating: TiAlN<br>• Single or Double End: Single<br>• Center Cutting: Yes<br>• Overall Length (Inch): 4"<br>• Flute Direction: Right<br>• Cutting Direction: Right<br>• Variable Helix: No<br>• Helix Angle: 30<br>The industry standard for a variety of applications including profile milling, slot milling and production milling in a variety of materials. TiAlN coated for increased speed and feed capabilities and enhanced tool life |
| Flute Direction | Right |
| Variable Helix | No |
| Product Type | Industrial Supplies |
| Shank Diameter (Inch) | 1" |
| Unit of Measure | Fractional |
| Mill Diameter (Inch) | 1" |
