Sowa Tool
102926

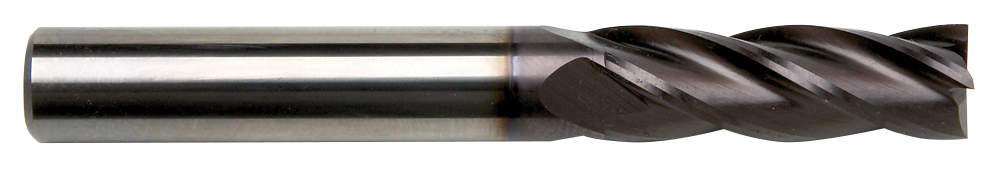

1/4" Diameter x 1/4" Shank 4-Flute Long Length Yellow Series Carbide End Mill
Specifications
| Shank Size (Inch) | 1/4 |
|---|---|
| Overall Length (Inch) | 3 |
| Length Of Cut (Inch) | 1-1/8 |
| Number Of Flutes | 4 |
| Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Double Ended | No |
| Cutting Direction | Right |
| Diameter (Inch) | 1/4 |
| Unit Of Measure | Fractional |
| Helix Angle | 30 degrees |
| Length Type | Long |
| Short Description | • Brand: GS Tooling<br>• Length Type : Long |
| Center Cutting | Yes |
| Long Description | • Mill Diameter (Inch): 1/4"<br>• Number of Flutes: 4<br>• Material: Solid Carbide<br>• Length of Cut (Inch): 1-1/8"<br>• Shank Diameter (Inch): 1/4"<br>• Finish/Coating: TiAlN<br>• Single or Double End: Single<br>• Center Cutting: Yes<br>• Overall Length (Inch): 3"<br>• Flute Direction: Right<br>• Cutting Direction: Right<br>• Variable Helix: No<br>• Helix Angle: 30<br>Long Length End mills combine added flute and overall length for greater reach when deep slotting or milling. These end mills have the capability to mill much thicker material in a single pass, thereby eliminating the interrupted cut that may be present with regular length end mills. TiAlN Coated for increased speed and feed capabilities and enhanced tool life |
| Flute Direction | Right |
| Variable Helix | No |
| Product Type | Industrial Supplies |
| Shank Diameter (Inch) | 1/4" |
| Unit of Measure | Fractional |
| Mill Diameter (Inch) | 1/4" |
