Sowa Tool
103027

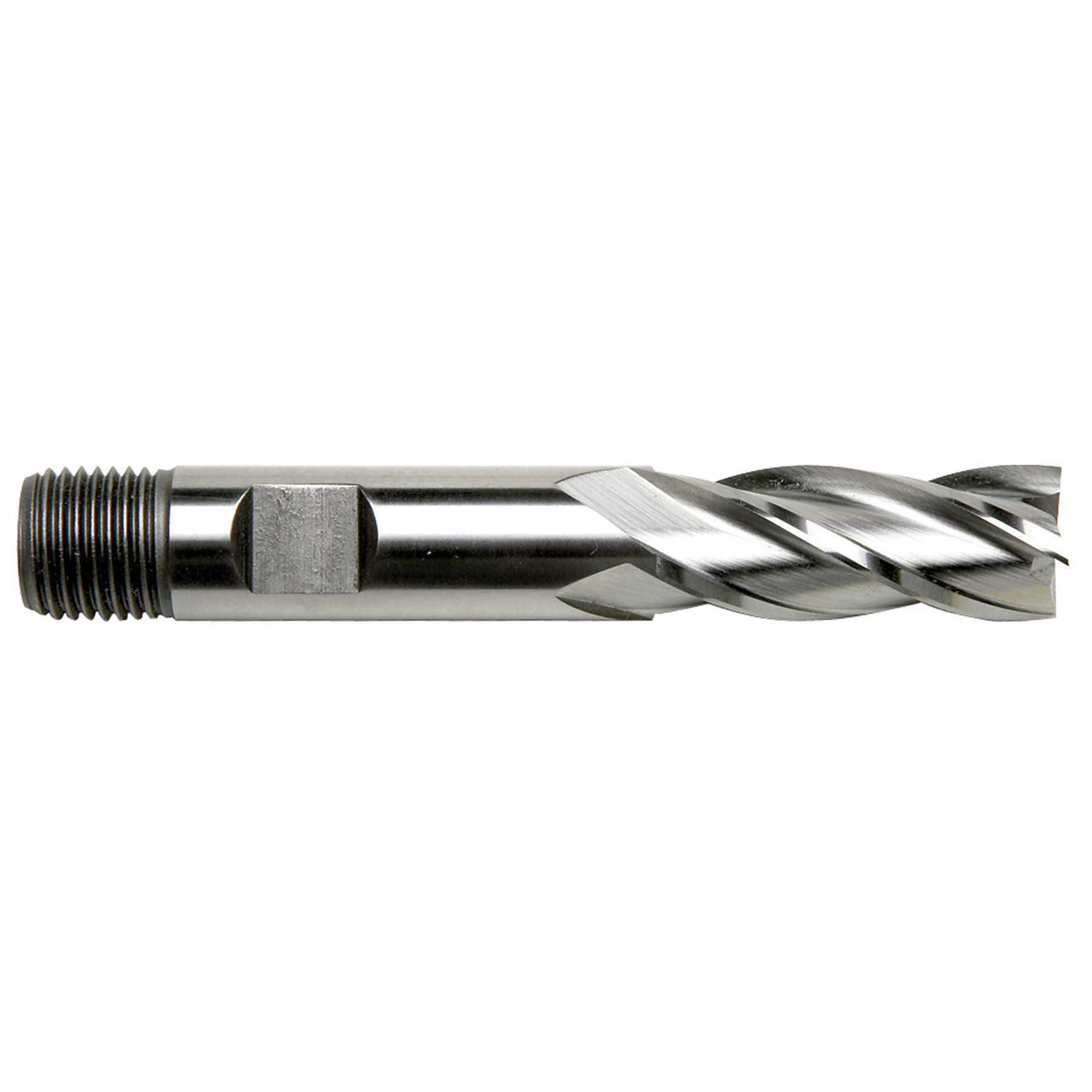

11/32" Diameter x 3/8" Shank Multi-Flute Regular Length Combination Shank HSCO Cobalt End Mill
Specifications
| Shank Size (Inch) | 3/8 |
|---|---|
| Type | High Performance |
| Overall Length (Inch) | 2-1/2 |
| Length Of Cut (Inch) | 3/4 |
| Number Of Flutes | 4 |
| Material | Cobalt |
| Coating/Finish | Bright |
| Double Ended | No |
| Cutting Direction | Right |
| Diameter (Inch) | 11/32 |
| Unit Of Measure | Fractional |
| Helix Angle | 30 degrees |
| Length Type | Regular |
| Short Description | • Brand: Sowa High Performance Cutting Tools<br>• Length Type : Regular |
| Center Cutting | Yes |
| Long Description | • Mill Diameter (Inch): 11/32"<br>• Number of Flutes: 4<br>• Material: Cobalt<br>• Length of Cut (Inch): 3/4"<br>• Shank Diameter (Inch): 3/8"<br>• Finish/Coating: Bright<br>• Single or Double End: Single<br>• Center Cutting: Yes<br>• Overall Length (Inch): 2-1/2"<br>• Flute Direction: Right<br>• Cutting Direction: Right<br>• Variable Helix: No<br>• Helix Angle: 30<br>Centre cutting allows these end mills to drill into the part for the beginning of a slot. These centre cutting end mills are recommended for pocketing, tracer milling, cam milling, die sinking and slotting |
| Flute Direction | Right |
| Variable Helix | No |
| Product Type | Industrial Supplies |
| Shank Diameter (Inch) | 3/8" |
| Unit of Measure | Fractional |
| Mill Diameter (Inch) | 11/32" |
