Sowa Tool
103443

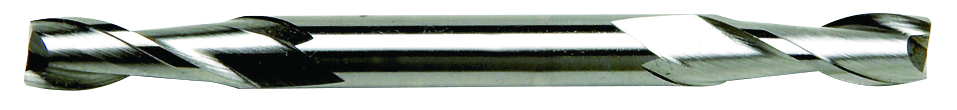

1/16" Diameter x 3/16" Shank 2-Flute Regular Length Double End Miniature HSCO Cobalt End Mill
Specifications
| Shank Size (Inch) | 3/16 |
|---|---|
| Type | High Performance |
| Overall Length (Inch) | 2-1/4 |
| Length Of Cut (Inch) | 3/16 |
| Number Of Flutes | 2 |
| Material | Cobalt |
| Coating/Finish | Bright |
| Double Ended | Yes |
| Cutting Direction | Right |
| Diameter (Inch) | 1/16 |
| Unit Of Measure | Fractional |
| Helix Angle | 30 degrees |
| Length Type | Regular |
| Short Description | • Brand: Sowa High Performance Cutting Tools<br>• Length Type : Regular |
| Center Cutting | Yes |
| Long Description | • Mill Diameter (Inch): 1/16"<br>• Number of Flutes: 2<br>• Material: Cobalt<br>• Length of Cut (Inch): 3/16"<br>• Shank Diameter (Inch): 3/16"<br>• Finish/Coating: Bright<br>• Single or Double End: Double<br>• Center Cutting: Yes<br>• Overall Length (Inch): 2-1/4"<br>• Flute Direction: Right<br>• Cutting Direction: Right<br>• Variable Helix: No<br>• Helix Angle: 30<br>Excellent tool geometry for slotting, keying and general purpose milling, plus the added economy offered by the double-end design |
| Flute Direction | Right |
| Variable Helix | No |
| Product Type | Industrial Supplies |
| Shank Diameter (Inch) | 3/16" |
| Unit of Measure | Fractional |
| Mill Diameter (Inch) | 1/16" |
