Sowa Tool
103702

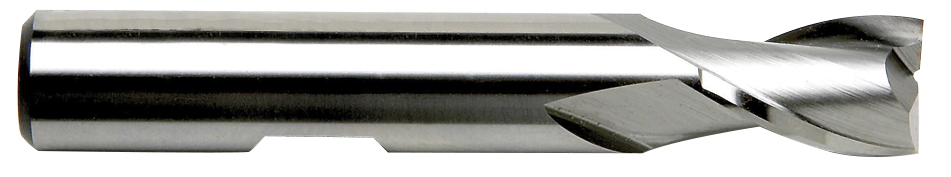

3.0mm Diameter x 3/8" Shank 2-Flute Regular Length HSCO Cobalt End Mill
Specifications
| Shank Size (Inch) | 3/8 |
|---|---|
| Type | High Performance |
| Overall Length (Inch) | 2-5/16 |
| Length Of Cut (Inch) | 5/16 |
| Number Of Flutes | 2 |
| Material | Cobalt |
| Coating/Finish | Bright |
| Double Ended | No |
| Diameter (Metric) | 3 |
| Cutting Direction | Right |
| Unit Of Measure | Metric |
| Helix Angle | 30 degrees |
| Length Type | Regular |
| Short Description | • Brand: Sowa High Performance Cutting Tools<br>• Length Type : Regular |
| Center Cutting | Yes |
| Long Description | • Mill Diameter (mm): 3<br>• Number of Flutes: 2<br>• Material: Cobalt<br>• Length of Cut (Inch): 5/16"<br>• Shank Diameter (Inch): 3/8"<br>• Finish/Coating: Bright<br>• Single or Double End: Single<br>• Center Cutting: Yes<br>• Overall Length (Inch): 2-5/16"<br>• Flute Direction: Right<br>• Cutting Direction: Right<br>• Variable Helix: No<br>• Helix Angle: 30<br>These end mills are furnished as regular with right-hand cutting and right-hand helical flutes. All shanks are flatted for holder set screw. Designed for slotting, drilling, pocketing and general-purpose operation. • 2 helical flutes • Single end with weldon shank • Centre cutting • Keyway tolerance |
| Flute Direction | Right |
| Variable Helix | No |
| Product Type | Industrial Supplies |
| Shank Diameter (Inch) | 3/8" |
| Unit of Measure | Metric |
| Mill Diameter (Metric) | 3 |
