Sowa Tool
104480

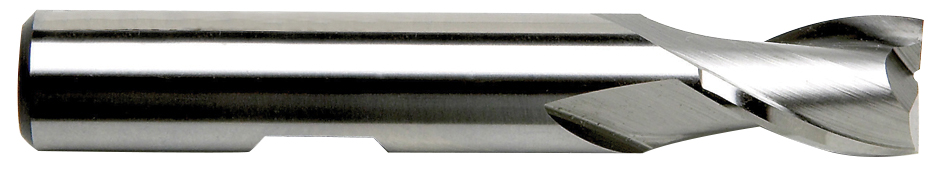

11/16" Diameter x 5/8" Shank 2-Flute Regular Length Weldon Flat H.S.S. End Mill
Specifications
| Shank Size (Inch) | 5/8 |
|---|---|
| Type | High Performance |
| Overall Length (Inch) | 3-7/16 |
| Length Of Cut (Inch) | 1-5/16 |
| Number Of Flutes | 2 |
| Material | High Speed Steel |
| Coating/Finish | Bright |
| Double Ended | No |
| Cutting Direction | Right |
| Diameter (Inch) | 11/16 |
| Unit Of Measure | Fractional |
| Helix Angle | 30 degrees |
| Length Type | Regular |
| Short Description | • Brand: Sowa High Performance Cutting Tools<br>• Length Type : Regular |
| Center Cutting | Yes |
| Long Description | • Mill Diameter (Inch): 11/16"<br>• Number of Flutes: 2<br>• Material: High Speed Steel<br>• Length of Cut (Inch): 1-5/16"<br>• Shank Diameter (Inch): 5/8"<br>• Finish/Coating: Bright<br>• Single or Double End: Single<br>• Center Cutting: Yes<br>• Overall Length (Inch): 3-7/16"<br>• Flute Direction: Right<br>• Cutting Direction: Right<br>• Variable Helix: No<br>• Helix Angle: 30<br>These end mills are furnished as regular with right-hand cutting and right-hand helical flutes. All shanks are flatted for holder set screw. Designed for slotting, drilling, pocketing and general-purpose operation. • 2 helical flutes • Centre cutting • Single end with weldon shank • Keyway tolerance |
| Flute Direction | Right |
| Variable Helix | No |
| Product Type | Industrial Supplies |
| Shank Diameter (Inch) | 5/8" |
| Unit of Measure | Fractional |
| Mill Diameter (Inch) | 11/16" |
