Sowa Tool
104708

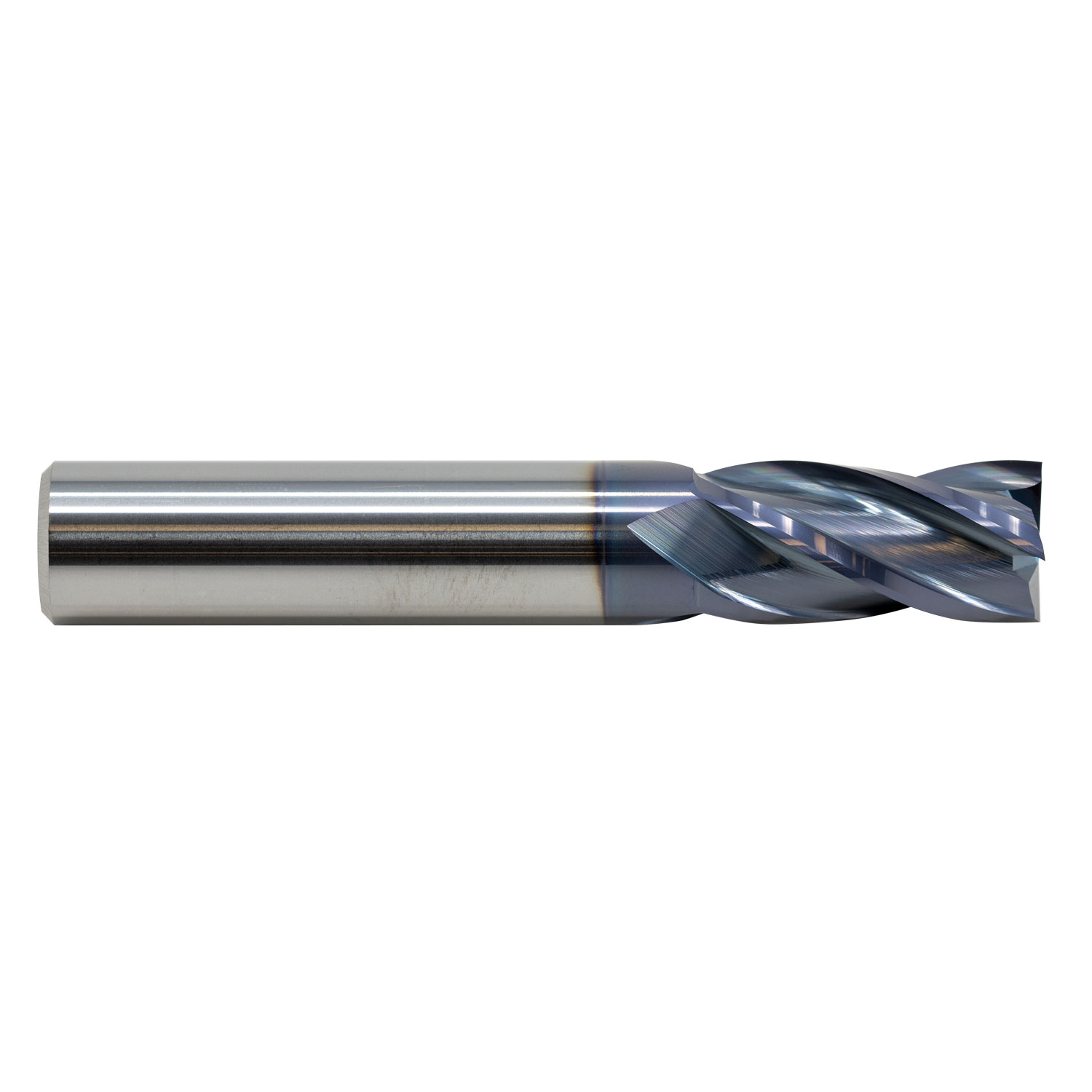

1/4" Diameter x 1/4" Shank 4-Flute Regular Length Typhoon Red Series Carbide End Mill
Specifications
| Shank Size (Inch) | 1/4 |
|---|---|
| Overall Length (Inch) | 2-1/2 |
| Length Of Cut (Inch) | 3/4 |
| Number Of Flutes | 4 |
| Material | Solid Carbide |
| Coating/Finish | Modified AlTiN |
| Double Ended | No |
| Cutting Direction | Right |
| Diameter (Inch) | 1/4 |
| Unit Of Measure | Fractional |
| Length Type | Regular |
| Short Description | • Brand: GS Tooling<br>• Length Type : Regular |
| Center Cutting | Yes |
| Long Description | • Mill Diameter (Inch): 1/4"<br>• Number of Flutes: 4<br>• Material: Solid Carbide<br>• Length of Cut (Inch): 3/4"<br>• Shank Diameter (Inch): 1/4"<br>• Finish/Coating: Modified AlTiN<br>• Single or Double End: Single<br>• Center Cutting: Yes<br>• Overall Length (Inch): 2-1/2"<br>• Flute Direction: Right<br>• Cutting Direction: Right<br>• Variable Helix: No<br>These end mills are manufactured with Premium Sub-Micron carbide and are designed to cut hardened materials. The unique geometry of the Typhoon end mill combined with its modified AlTiN coating make it an excellent choice for demanding applications |
| Flute Direction | Right |
| Variable Helix | No |
| Product Type | Industrial Supplies |
| Shank Diameter (Inch) | 1/4" |
| Unit of Measure | Fractional |
| Mill Diameter (Inch) | 1/4" |
