Sowa Tool
114961

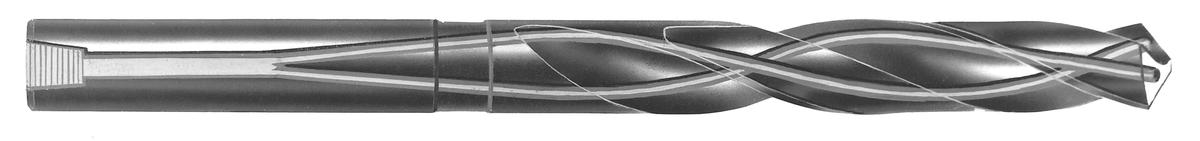

1-13/16" Diameter x 16-1/4" O.A.L. Straight Shank H.S.S. Oil Hole Drill
Specifications
| Diameter (Inch) | 1-13/16 |
|---|---|
| Material | High Speed Steel |
| Flute Length (Inch) | 10-1/2 |
| Coating/Finish | Bronze Oxide |
| Flute Type | Spiral |
| Short Description | • Brand: STM Premium<br>• Flute Length (Inch) : 10-1/2"<br>• Overall Length (Inch) : 16-1/4"<br>• Point Type : Notched Point |
| Diameter | 1-13/16 Inch |
| Unit Of Measure | Fractional |
| Shank Type | Straight |
| Point Type | Notched |
| Cutting Direction | Right |
| Point Angle | 118 degrees |
| Long Description | • Drill Bit Size (Inch): 1-13/16"<br>• Drill Point Angle (Degrees): 118<br>• Drill Bit Material: High Speed Steel<br>• Drill Bit Finish/Coating: Bronze Oxide<br>• Flute Type: Spiral Flute<br>• Cutting Direction: Right Hand<br>• Shank Type: Straight<br>• Through Coolant: Yes<br>These drills are designed with oil holes the length of the land section of the drill to deliver a high pressure oil flow to the cutting edges. The resulting coolant flow flushes chips out of the hole to reduce heat and chip packing problems common to deep hole drilling applications. Surface speeds may be increased 30% or more over standard drill styles. • 118º notched point |
| Through Coolant | Yes |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
