Sowa Tool
129584

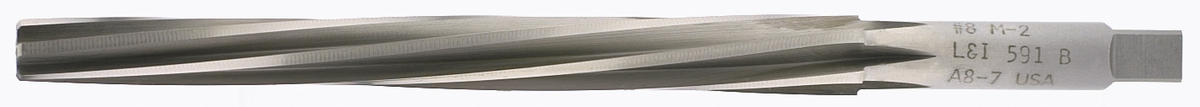

#1 Left Hand Spiral Flute H.S.S. Taper Pin Reamer
Specifications
| Shank Type | Straight |
|---|---|
| Flute Type | Spiral Flute |
| Long Description | • Taper Pin Size (Number): 1<br>• Small End Diameter (Decimal Inch): 0.1447<br>• Reamer Diameter (Decimal Inch): 0.1798<br>• Flute Type: Spiral Flute<br>• Shank Type: Straight<br>Used to ream holes into which standard taper pins will fit. • Taper 1/4" per foot • High Speed Steel • Ideally used in the attachment of gears, pulleys to shafts • Intended for hand reaming • Recommended that the drilled hole be a few thousandths smaller than the small diameter of the finished reamed hole • Straight shank • Right hand cut |
| Short Description | • Brand: STM Premium<br>• Overall Length (Inch) : 2-15/16"<br>• Flute Length (Inch) : 1-11/16"<br>• Shank Diameter (Inch) : 3/16"<br>• Spiral Direction : Left<br>• Cutting Direction : Right Hand<br>• Reamer Material : High Speed Steel<br>• Reamer Finish/Coating : Bright<br>• Number Of Flutes : 6 |
