Sowa Tool
145761

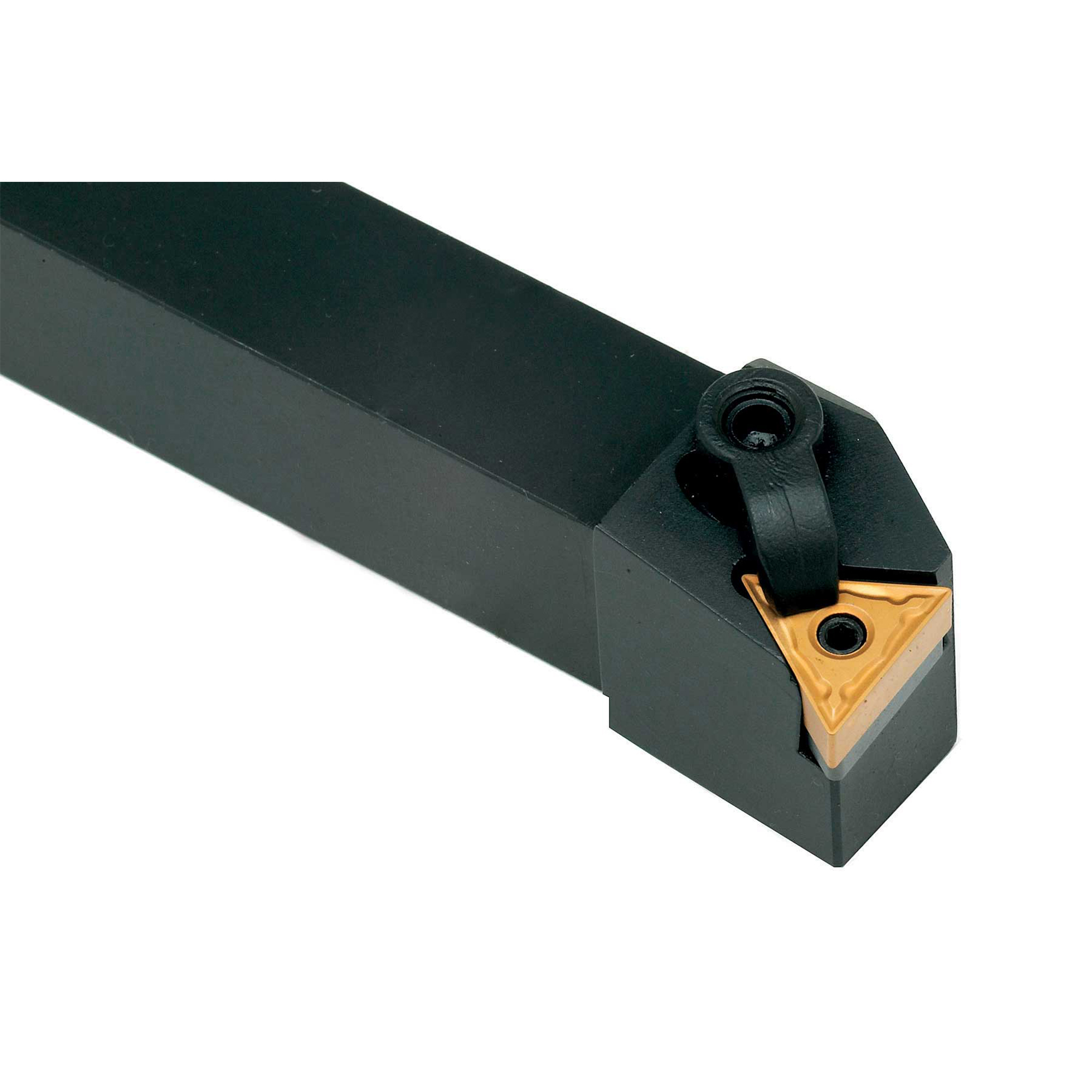

MTFNL 12-3B External Turning Toolholder
Specifications
| Toolholder Style | MTFNL |
|---|---|
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Insert Holding Method : Pin & Clamp<br>• Back of Bar to Cutting Edge (Decimal Inch) : 1<br>• Head Length (Decimal Inch) : 0.787<br>• Cutting Height (Decimal Inch) : 0.75 |
| Long Description | • Hand of Holder: Left Hand<br>• Toolholder Style: MTFNL<br>• Rake Angle: -7º<br>• Shank Width (Decimal Inch): 0.75<br>• Shank Height (Decimal Inch): 0.75<br>• Overall Length (Decimal Inch): 4.5<br>• Insert Compatibility: TN__ 33_<br> |
| Insert Compatibility | TN__ 33_ |
| Overall Length (Decimal Inch) | 4.5 |
| Shank Width (Inch) | 0.75 |
| Shank Height (Inch) | 0.75 |
