Sowa Tool
145774

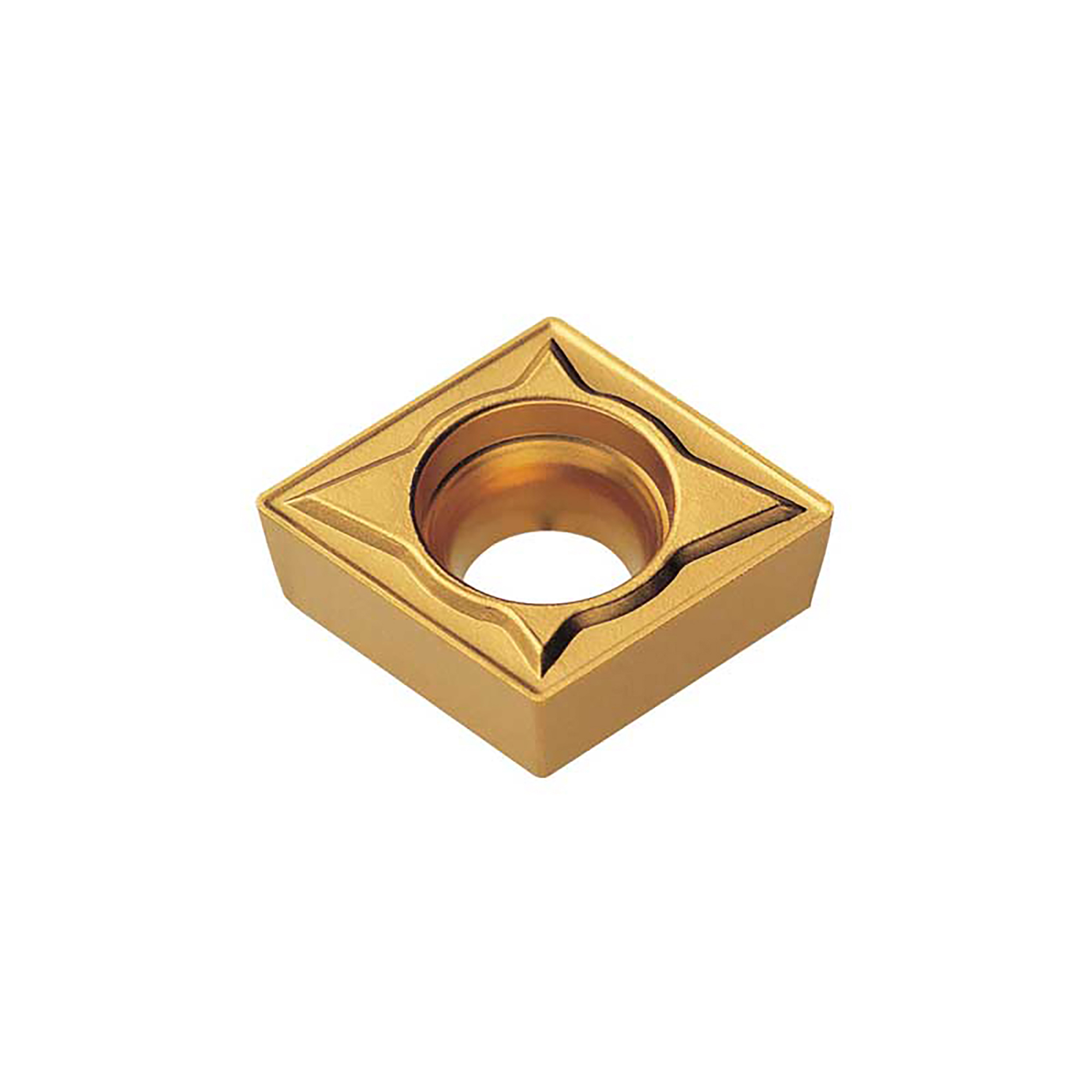

CCMT 32.51 - F3P PT30C Carbide Turning Insert
Specifications
| Material | Carbide |
|---|---|
| Corner Radius (Inch) | 1/64" |
| Thickness (Inch) | 5/32" |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Relief Angle : 7<br>• Material Grade : C5, C5-C6<br>• Chip Breaker : F3P<br>• ISO Size : 09T308 |
| Long Description | • Insert Style: CCMT<br>• Insert Size: 32.51<br>• Material: Carbide<br>• Inscribed Circle (Inch): 3/8"<br>• Length (Decimal Inch): 0.382<br>• Thickness (Inch): 5/32"<br>• Corner Radius (Inch): 1/64"<br>• Manufacturer's Grade: PT30C<br>• Suitable for intermittent cutting and cast iron machining. • Good surface finish due to low cutting force. • Suitable for both boring and outer diameter turning. |
| Length (Inch) | 0.382 |
| Insert Style | CCMT |
| Insert Size | 32.51 |
