Sowa Tool
145921

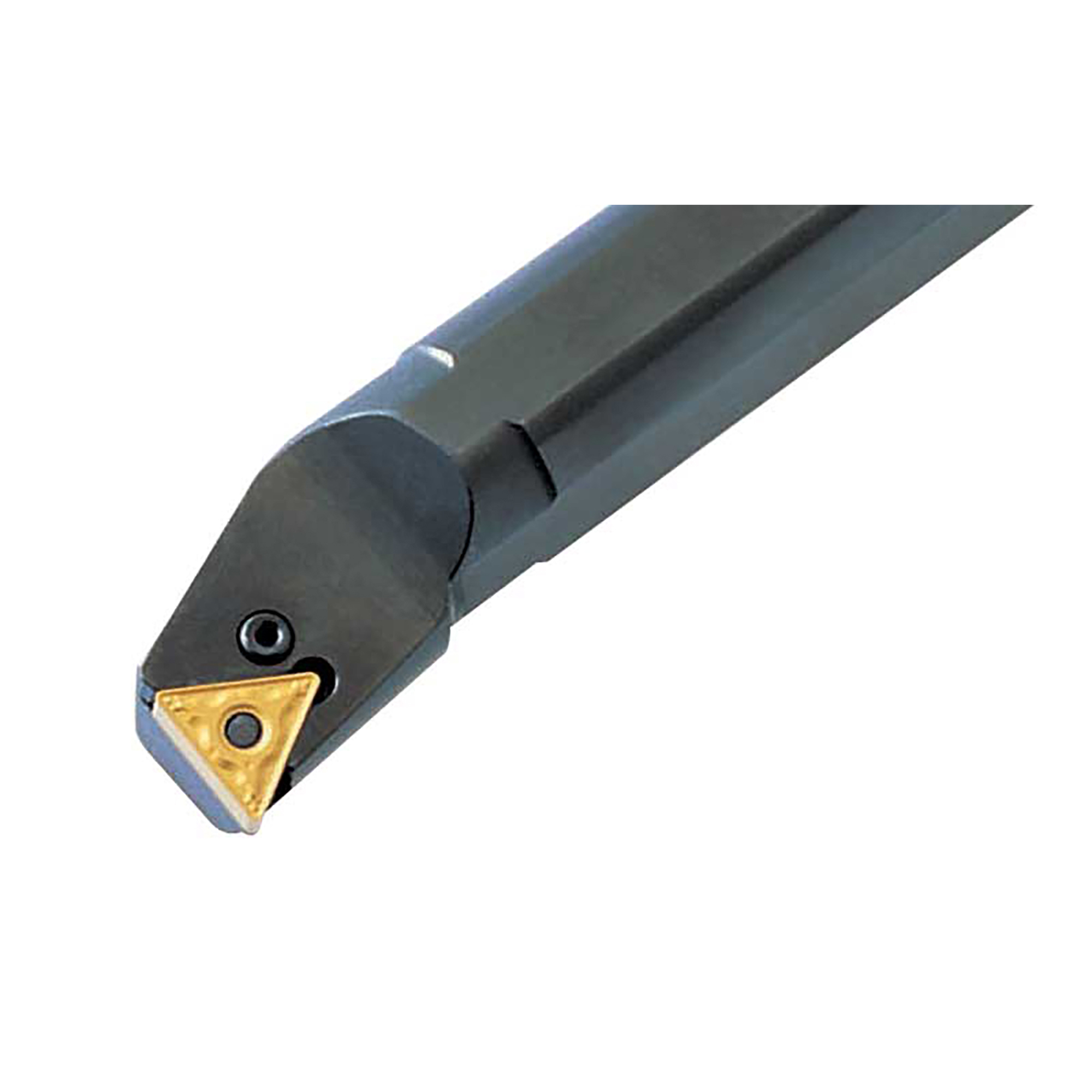

S20U-PTFNR-3 Indexable Boring Bar
Specifications
| Overall Length (Inch) | 14 |
|---|---|
| Minimum Bore Diameter (Inch) | 1.47 |
| Long Description | • Toolholder Style: PTFNR<br>• Minimum Bore Diameter (Decimal Inch): 1.47<br>• Hand of Holder: Right Hand<br>• Overall Length (Inch): 14<br>• Shank Diameter (Decimal Inch): 1.25<br>• Insert Compatibility: TN__ 33_<br>• Through Coolant: No<br> |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Insert Holding Method : Pin<br>• Lead Angle : 10º<br>• Center to Cutting Edge (Decimal Inch) : 0.765<br>• Rake Angle : -6<br>• Shank Width Between Flats : 1.171<br>• Head Length (Decimal Inch) : 1.969 |
| Through Coolant | No |
| Shank Diameter (Inch) | 1.25 |
| Insert Compatibility | TN__ 33_ |
| Toolholder Style | PTFNR |
