Sowa Tool
145928

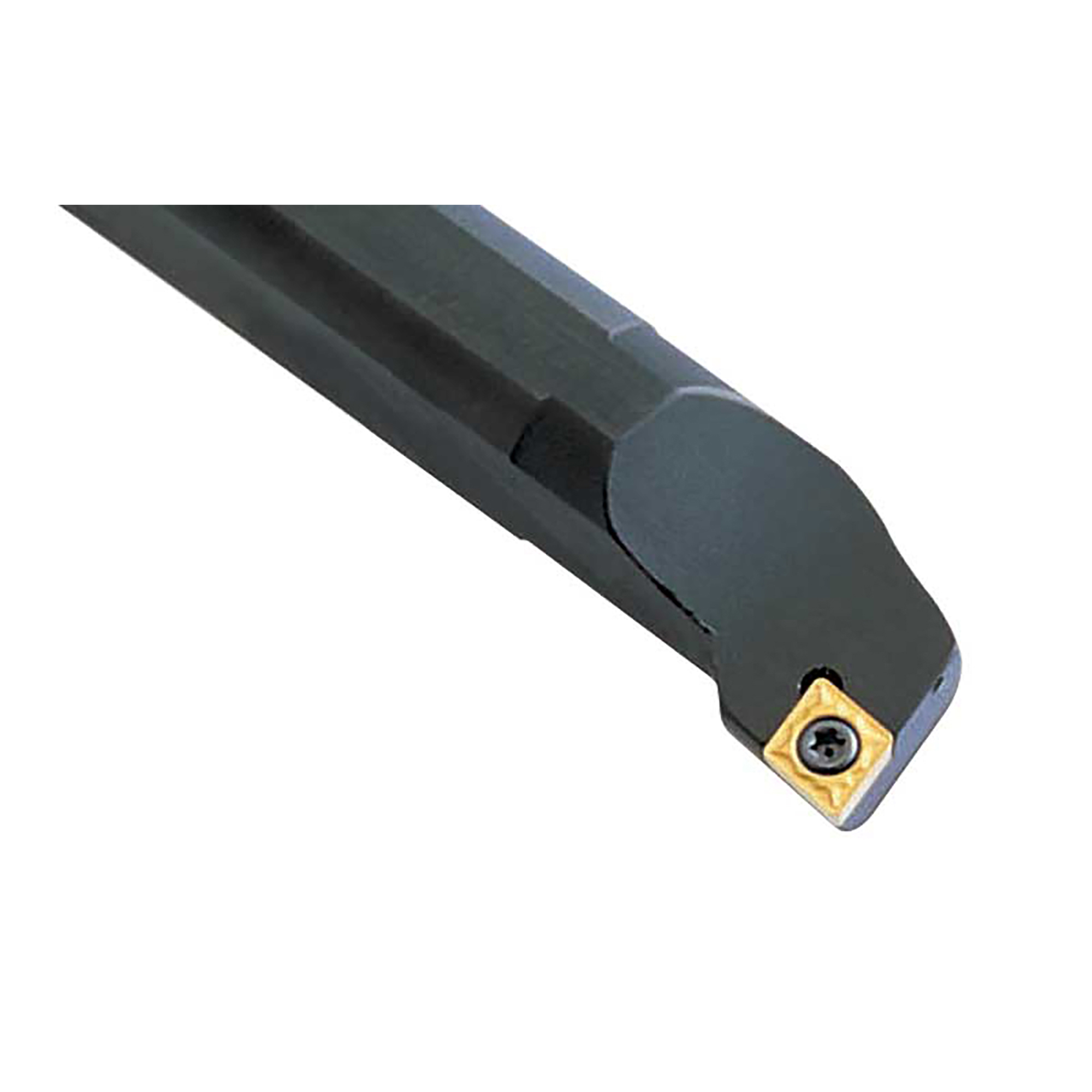

S10R-SCLCL-3 Indexable Boring Bar
Specifications
| Overall Length (Inch) | 8 |
|---|---|
| Minimum Bore Diameter (Inch) | 0.77 |
| Long Description | • Toolholder Style: SCLCL<br>• Minimum Bore Diameter (Decimal Inch): 0.77<br>• Hand of Holder: Left Hand<br>• Overall Length (Inch): 8<br>• Shank Diameter (Decimal Inch): 0.625<br>• Insert Compatibility: CC_T 32.5_<br>• Through Coolant: No<br> |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Insert Holding Method : Screw<br>• Lead Angle : 12º<br>• Center to Cutting Edge (Decimal Inch) : 0.406<br>• Rake Angle : 0<br>• Shank Width Between Flats : 0.586<br>• Head Length (Decimal Inch) : 1.28 |
| Through Coolant | No |
| Shank Diameter (Inch) | 0.625 |
| Insert Compatibility | CC_T 32.5_ |
| Toolholder Style | SCLCL |
