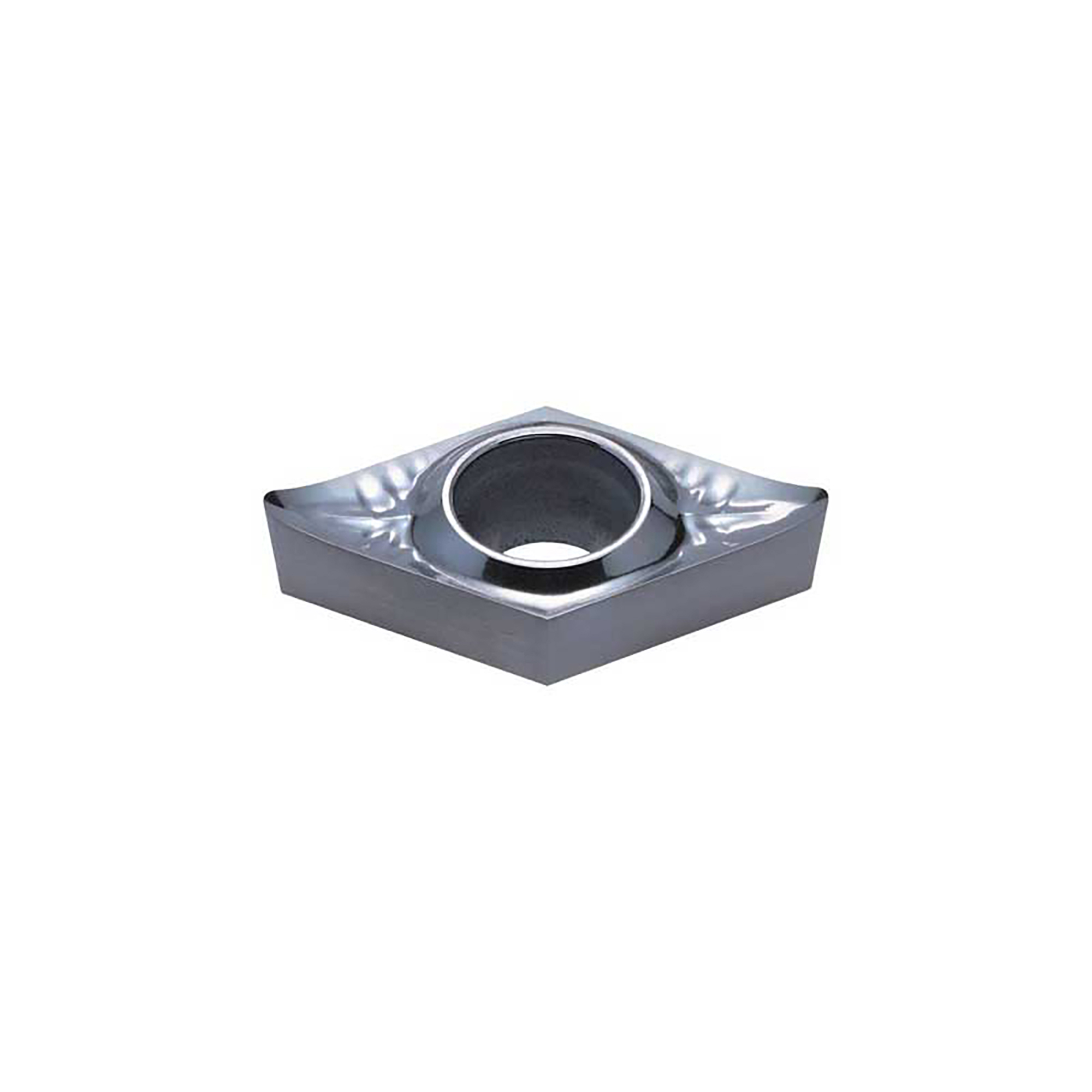

DCGT21.52-AM KT10U Carbide Turning Insert
Specifications
| Material | Carbide |
|---|---|
| Corner Radius (Inch) | 1/32" |
| Thickness (Inch) | 3/32" |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Relief Angle : 7<br>• Material Grade : C3, C3-C4<br>• Chip Breaker : AM |
| Long Description | • Insert Style: DCGT<br>• Insert Size: 21.52<br>• Material: Carbide<br>• Inscribed Circle (Inch): 1/4"<br>• Length (Decimal Inch): 0.307<br>• Thickness (Inch): 3/32"<br>• Corner Radius (Inch): 1/32"<br>• Manufacturer's Grade: KT10U<br>• Exclusive chip breaker for aluminum and aluminum alloy. • Polished, uncoated |
| Length (Inch) | 0.307 |
| Insert Style | DCGT |
| Insert Size | 21.52 |
