Sowa Tool
146093

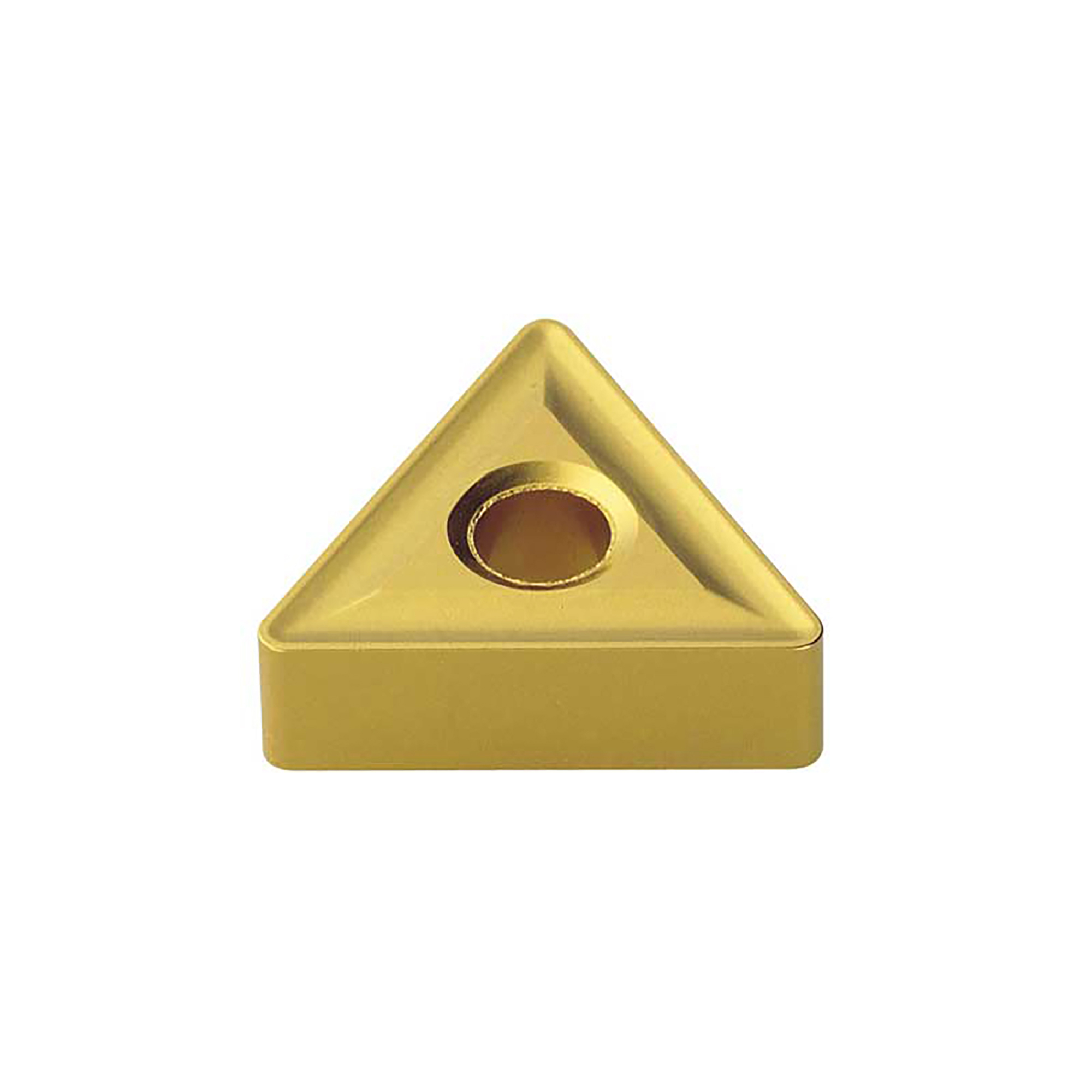

TNMG322-G PT30C Carbide Negative Turning Insert
Specifications
| Material | Carbide |
|---|---|
| Corner Radius (Inch) | 1/32" |
| Thickness (Inch) | 1/8" |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Relief Angle : 0<br>• Material Grade : C5, C5-C6<br>• Chip Breaker : G<br>• ISO Size : 160308 |
| Long Description | • Insert Style: TNMG<br>• Insert Size: 322<br>• Material: Carbide<br>• Inscribed Circle (Inch): 3/8"<br>• Length (Decimal Inch): 0.65<br>• Thickness (Inch): 1/8"<br>• Corner Radius (Inch): 1/32"<br>• Manufacturer's Grade: PT30C<br>• Suitable for general cutting condition cutting. |
| Length (Inch) | 0.65 |
| Insert Style | TNMG |
| Insert Size | 322 |
