Sowa Tool
146138

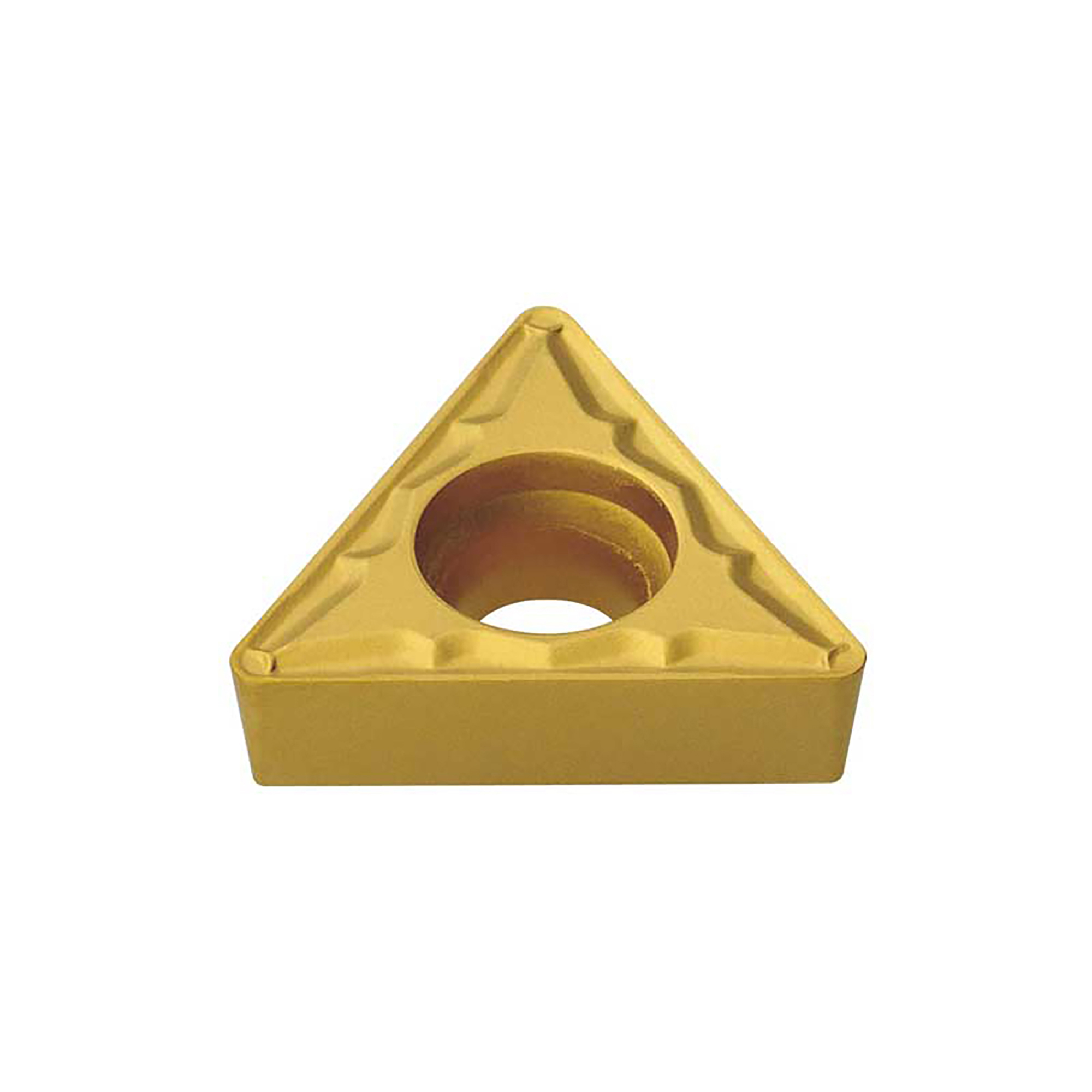

TCMT 21.51 - F2P PT30C Carbide Turning Insert
Specifications
| Material | Carbide |
|---|---|
| Corner Radius (Inch) | 1/64" |
| Thickness (Inch) | 3/32" |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Relief Angle : 7<br>• Material Grade : C5-C6, C6<br>• Chip Breaker : F2P<br>• ISO Size : 110204 |
| Long Description | • Insert Style: TCMT<br>• Insert Size: 21.51<br>• Material: Carbide<br>• Inscribed Circle (Inch): 1/4"<br>• Length (Decimal Inch): 0.433<br>• Thickness (Inch): 3/32"<br>• Corner Radius (Inch): 1/64"<br>• Manufacturer's Grade: PT30C<br>• Excellent chip control at wide range of cutting conditions. • Suitable for stainless steel cutting. |
| Length (Inch) | 0.433 |
| Insert Style | TCMT |
| Insert Size | 21.51 |
