Sowa Tool
146201

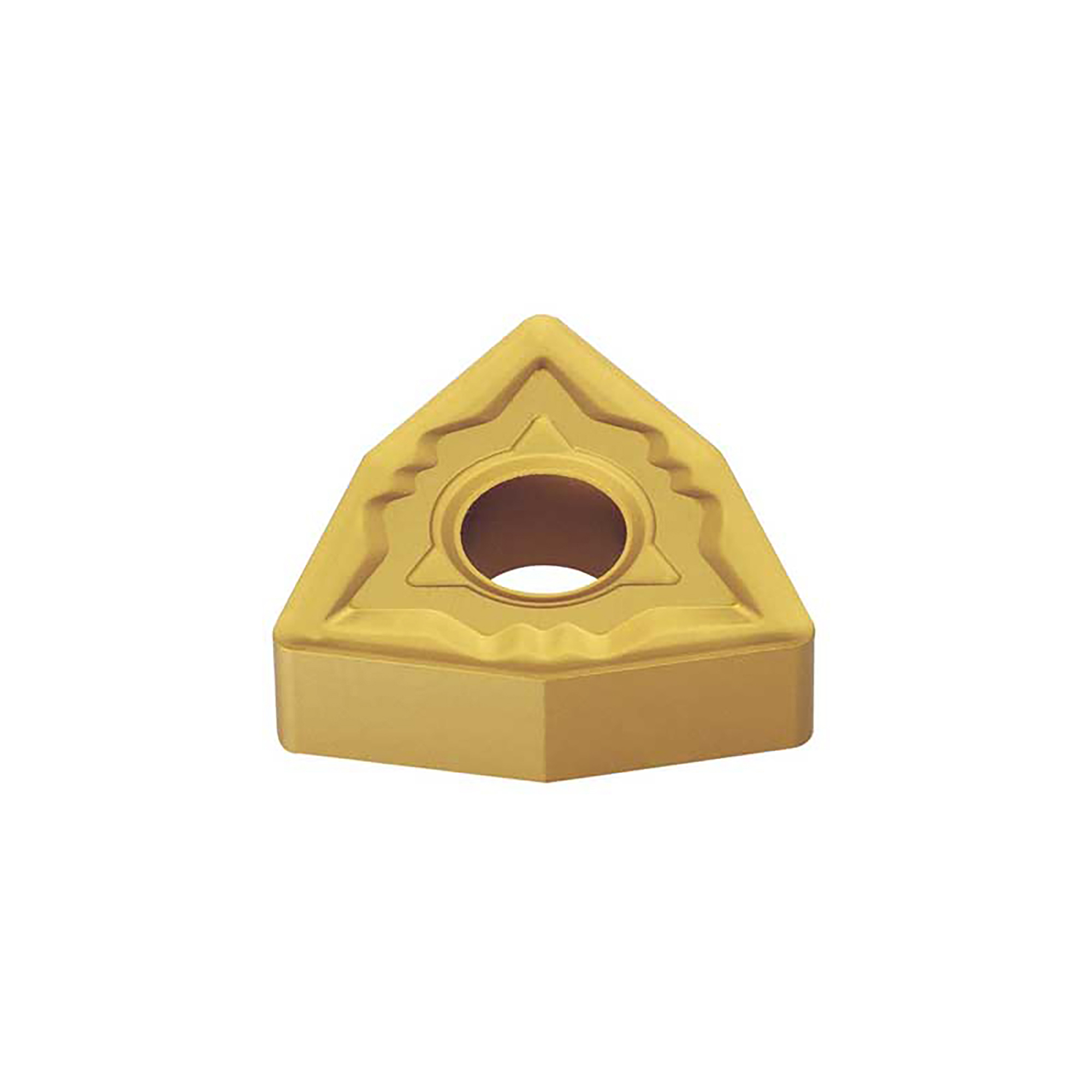

WNMG 331 - SM MT30P Carbide Turning Insert
Specifications
| Material | Carbide |
|---|---|
| Corner Radius (Inch) | 1/64" |
| Thickness (Inch) | 3/16" |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Relief Angle : 0<br>• Material Grade : C5<br>• Chip Breaker : SM<br>• ISO Size : 60404 |
| Long Description | • Insert Style: WNMG<br>• Insert Size: 331<br>• Material: Carbide<br>• Inscribed Circle (Inch): 3/8"<br>• Length (Decimal Inch): 0.256<br>• Thickness (Inch): 3/16"<br>• Corner Radius (Inch): 1/64"<br>• Manufacturer's Grade: MT30P<br>• Exclusive design for stainless steel cutting provide longer tool life • Wear resistance have been reinforced through high rake angle of chip breaker land. |
| Length (Inch) | 0.256 |
| Insert Style | WNMG |
| Insert Size | 331 |
