Sowa Tool
146252

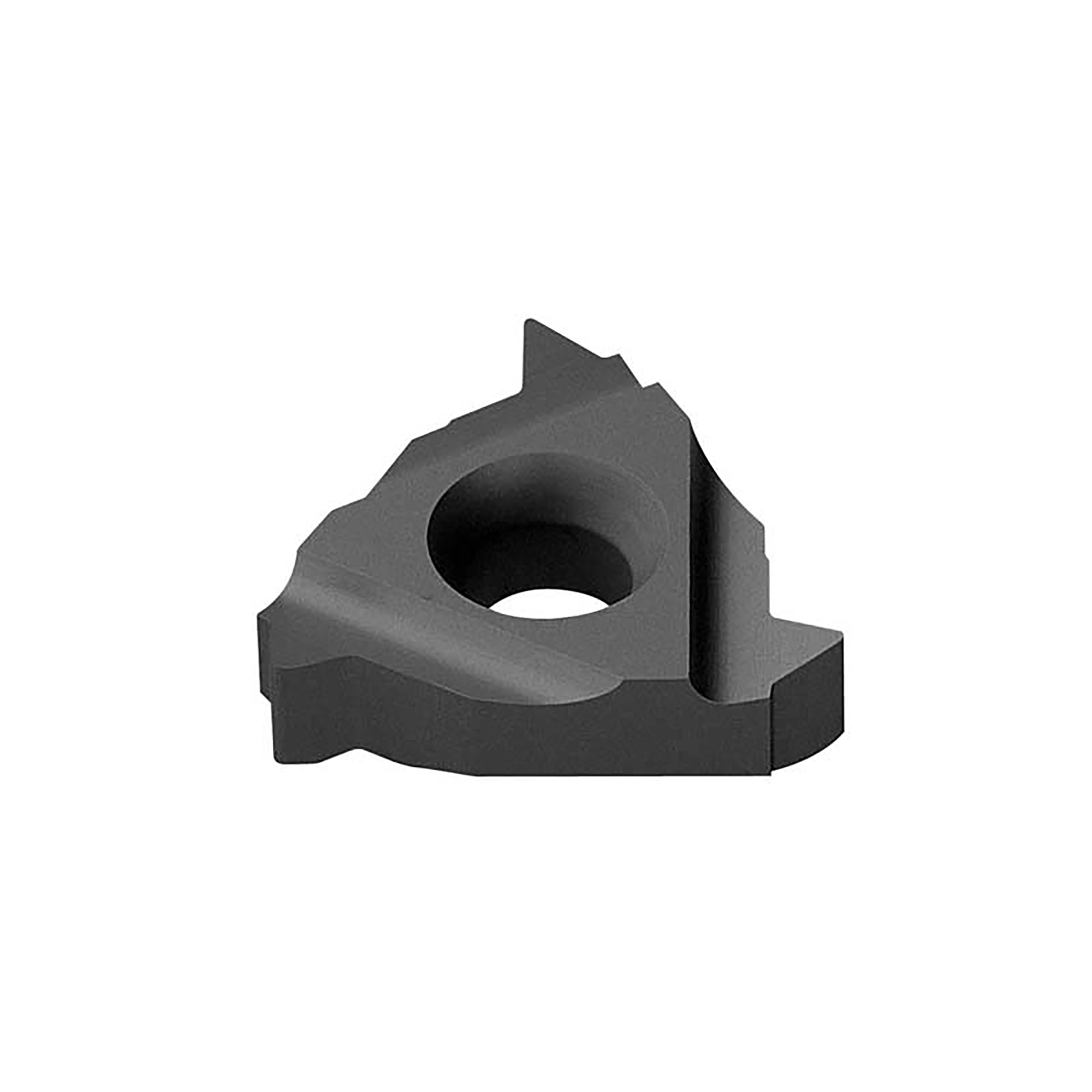

ICTR10UN PM30P Carbide Internal Threading Insert
Specifications
| Thread Type | Internal |
|---|---|
| Insert Hand | Right |
| Long Description | • Material: Carbide<br>• Insert Style: ICTR<br>• Insert Hand: Right<br>• Thread Type: Internal<br>• Thread Standard: UN<br>• Manufacturer's Grade: PM30P<br>• Material Grade: C5, C5-C6<br>• Internal Threads Per (Inch): 10<br>• Inscribed Circle (Inch): 3/8"<br>• Thickness (Decimal Inch): 0.142<br>• Included Angle of Threading Tip: 60<br> |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Coating : TiAlN<br>• Coating Process : PVD<br>• Cutting Edge to Theoretical Edge Length (Decimal Inch) : 0.059<br>• Face of Insert to Tip Centerline (Decimal Inch) : 0.059 |
| Material | Carbide |
| Thread Standard | UN |
| Thickness (Inch) | 0.142 |
| Insert Style | ICTR |
| Material Grade | C5, C5-C6 |
