Sowa Tool
146789

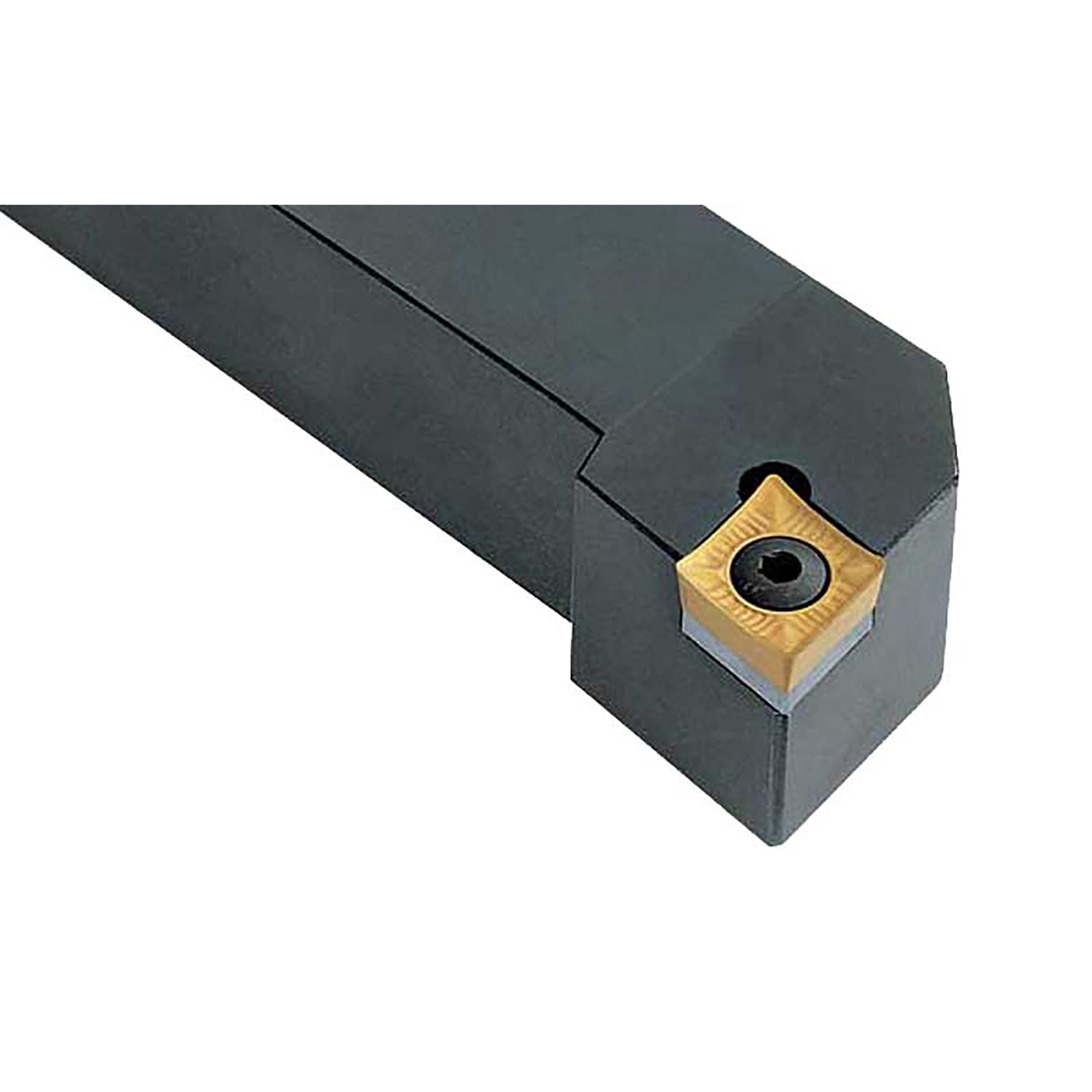

SCLCL 12-4B External Turning Toolholder
Specifications
| Toolholder Style | SCLCL |
|---|---|
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Insert Holding Method : Screw<br>• Back of Bar to Cutting Edge (Decimal Inch) : 1<br>• Head Length (Decimal Inch) : 0.984<br>• Cutting Height (Decimal Inch) : 0.75 |
| Long Description | • Hand of Holder: Left Hand<br>• Toolholder Style: SCLCL<br>• Rake Angle: -7º<br>• Shank Width (Decimal Inch): 0.75<br>• Shank Height (Decimal Inch): 0.75<br>• Overall Length (Decimal Inch): 4.5<br>• Insert Compatibility: CC_T 43_<br> |
| Insert Compatibility | CC_T 43_ |
| Overall Length (Decimal Inch) | 4.5 |
| Shank Width (Inch) | 0.75 |
| Shank Height (Inch) | 0.75 |
