Sowa Tool
146856

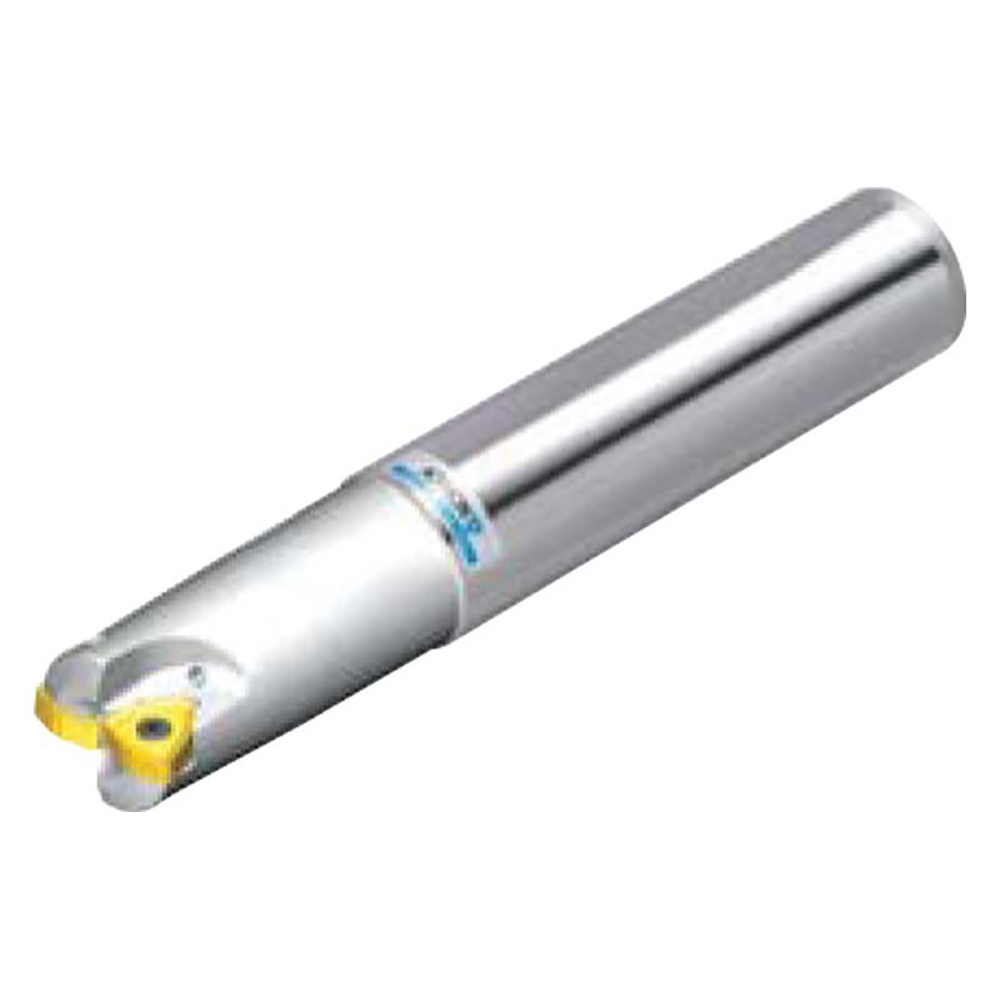

HFNA13162HR-3S125 Indexable End Mill
Specifications
| Shank Type | Straight |
|---|---|
| Shank Diameter (Inch) | 1.25 |
| Cutting Diameter (Inch) | 1.625 |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Insert Holding Method : Screw<br>• Through Coolant : Yes<br>• Head Length (Decimal Inch) : 1.969<br>• Overall Length (Decimal Inch) : 5.906 |
| Long Description | • Cutting Diameter (Decimal Inch): 1.625<br>• Shank Type: Straight<br>• Shank Diameter (Decimal Inch): 1.25<br>• Number of Cutter Inserts: 3<br>• Insert Style: WNMX 1305<br>• Toolholder Style: HFNA 13162HR-3S125<br>• Maximum Depth of Cut (Decimal Inch): 0.08<br>• Powerful & economic milling tool with double clamping, negative, 3-corner insert.<br>• Longer tool life with various insert grades<br>• Shortened machining cycle time<br>• Long tool life due to low cutting resistance chipbreaker<br>• Decreased cutting resistance allows for high feed cutting<br>• Coolant through |
| Insert Style | WNMX 1305 |
| Toolholder Style | HFNA 13162HR-3S125 |
