Sowa Tool
147014

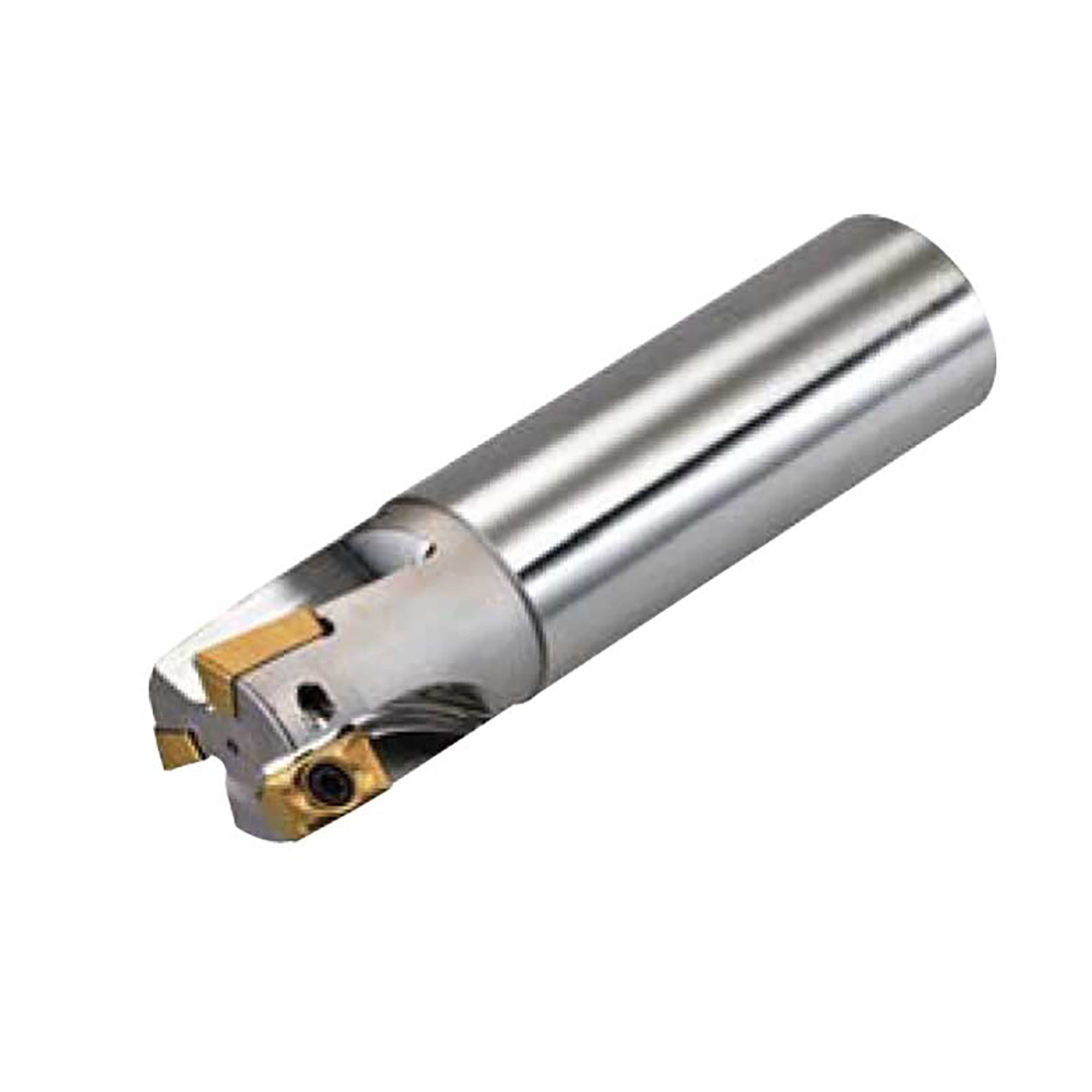

AP11M-90 2100L 1 Indexable End Mill
Specifications
| Shank Type | Weldon |
|---|---|
| Shank Diameter (Inch) | 1 |
| Cutting Diameter (Inch) | 1 |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Maximum Depth of Cut (Decimal Inch) : 0.433<br>• Number of Cutter Inserts : 3<br>• Insert Holding Method : Screw<br>• Insert Style : APMT 11T3<br>• Head Length (Decimal Inch) : 1.575 |
| Long Description | • Cutting Diameter (Decimal Inch): 1<br>• Shank Type: Weldon<br>• Shank Diameter (Decimal Inch): 1<br>• Overall Length (Decimal Inch): 7.087<br>• Through Coolant: Yes<br>• Coolant through<br>• AR: 3º ~ 14º |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 7.087 |
