Sowa Tool
147025

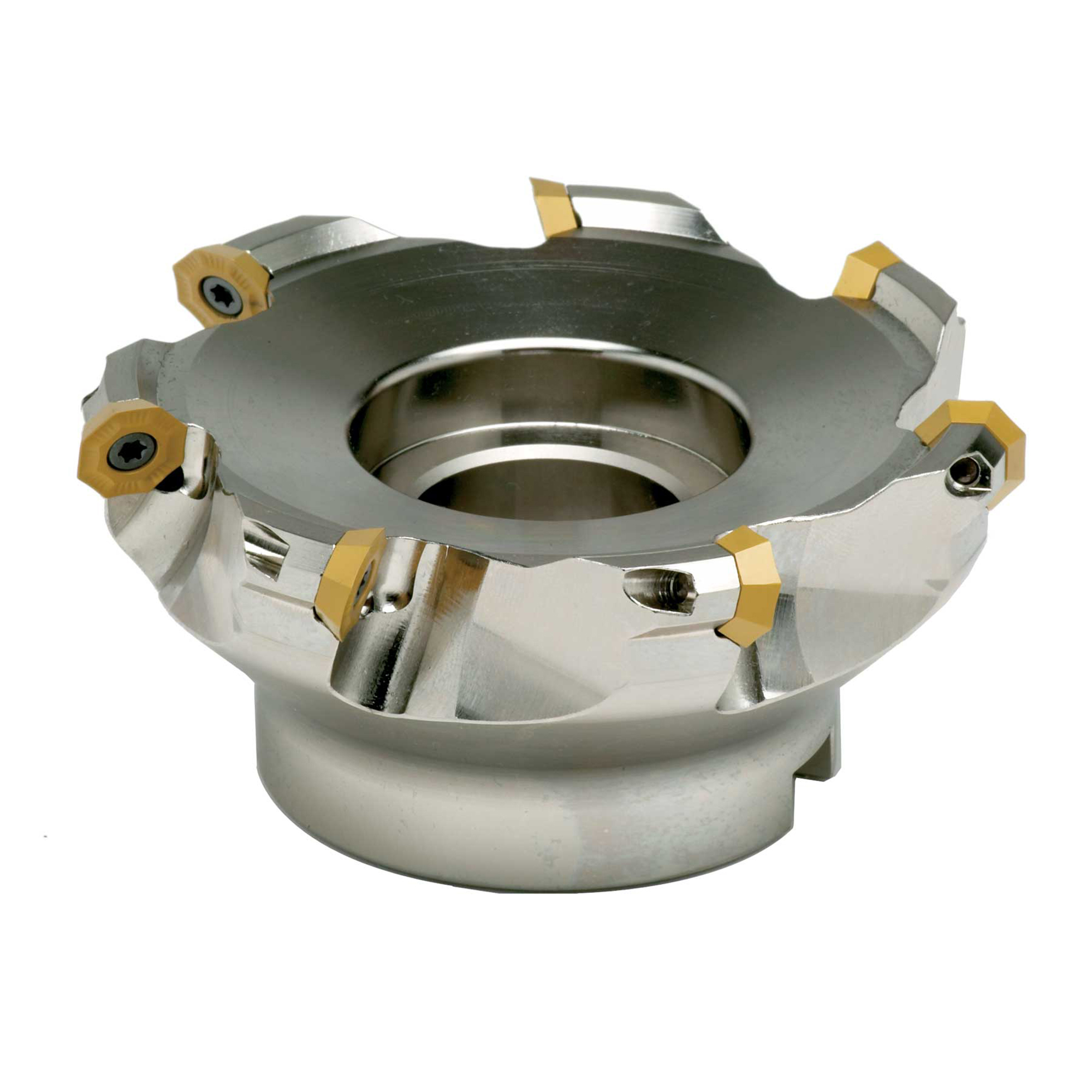

OKT-MAX 5"R 5" 45º Face Mill
Specifications
| Cutting Diameter (Inch) | 5 |
|---|---|
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Maximum Depth of Cut (Decimal Inch) : 0.5<br>• Number of Cutter Inserts : 8<br>• Insert Holding Method : Screw<br>• Number of Flutes : 8<br>• Cutting Direction : Right<br>• Maximum Body Diameter (Decimal Inch) : 5.307 |
| Series | OKT-Max |
| Long Description | • Cutting Diameter (Decimal Inch): 5<br>• Arbor Hole Diameter (Decimal Inch): 1.5<br>• Overall Height (Decimal Inch): 2<br>• Insert Compatibility: OFCW 05T3; OFKT 05T3<br>• Series: OKT-Max<br>• Through Coolant: No<br>• High rake angle<br>• Economical cutter thanks to the 8-cornered inserts<br>• Steel, Alloy Steel, Cast Iron<br>• 45º angle of cut |
| Arbor Hole Diameter (Inch) | 1.5 |
| Through Coolant | No |
| Insert Compatibility | OFCW 05T3; OFKT 05T3 |
| Overall Height (Inch) | 2 |
