Sowa Tool
147038

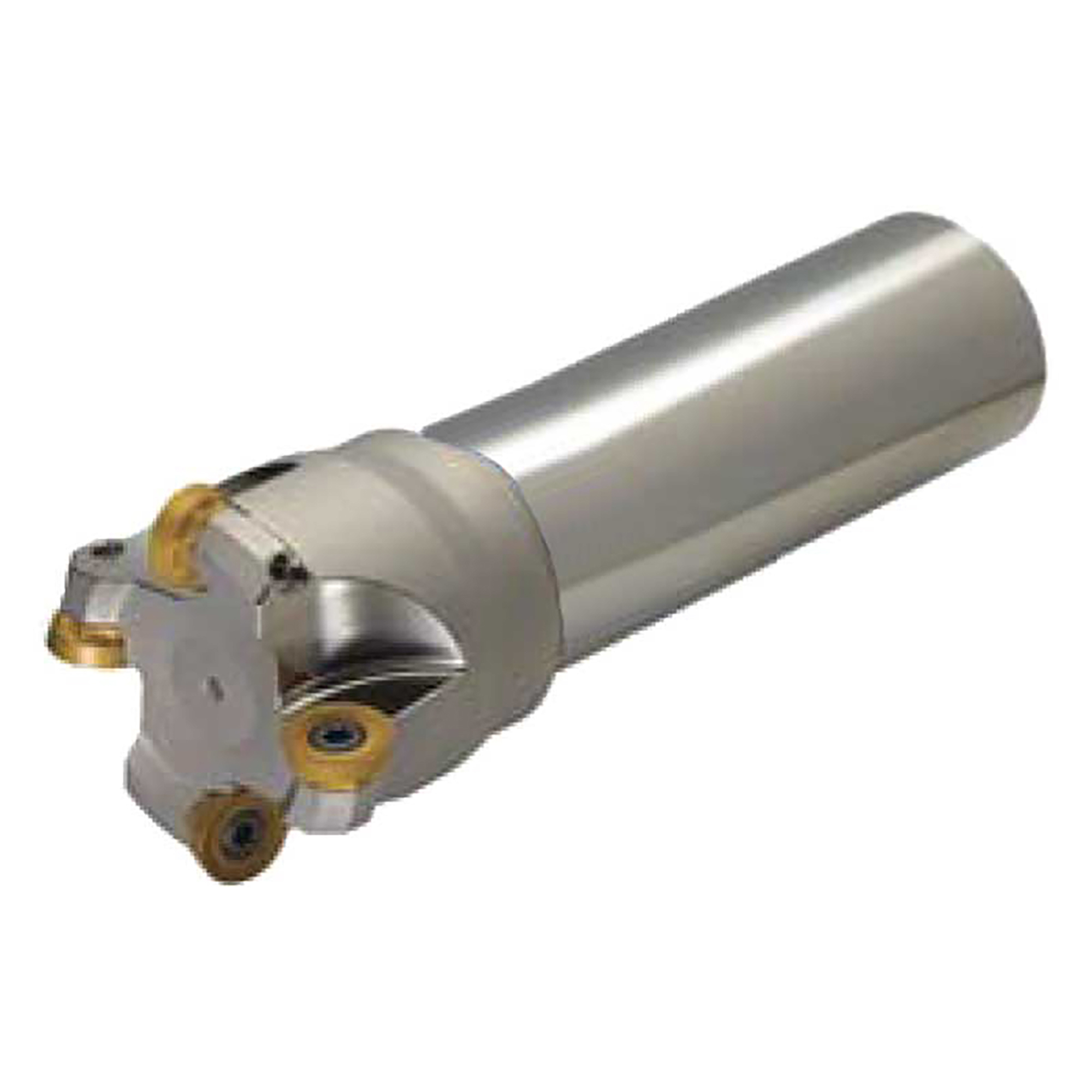

BMSS4150HRD-M 1.50" Indexable End Mill
Specifications
| Series | BMSS |
|---|---|
| Shank Type | Straight |
| Shank Diameter (Inch) | 1.25 |
| Cutting Diameter (Inch) | 1.5 |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Overall Length (Decimal Inch) : 7.874<br>• Through Coolant : Yes<br>• Head Length (Decimal Inch) : 2.756<br>• Insert Diameter (mm) : 15/32" |
| Long Description | • Cutting Diameter (Decimal Inch): 1.5<br>• Maximum Depth of Cut (Decimal Inch): 0.236<br>• Shank Type: Straight<br>• Shank Diameter (Decimal Inch): 1.25<br>• Number of Cutter Inserts: 3<br>• Insert Style: RDKT 1204<br>• Toolholder Style: BMSS 4150HRD-M<br>• Series: BMSS<br>• Coolant through |
| Insert Style | RDKT 1204 |
| Toolholder Style | BMSS 4150HRD-M |
