Sowa Tool
147132

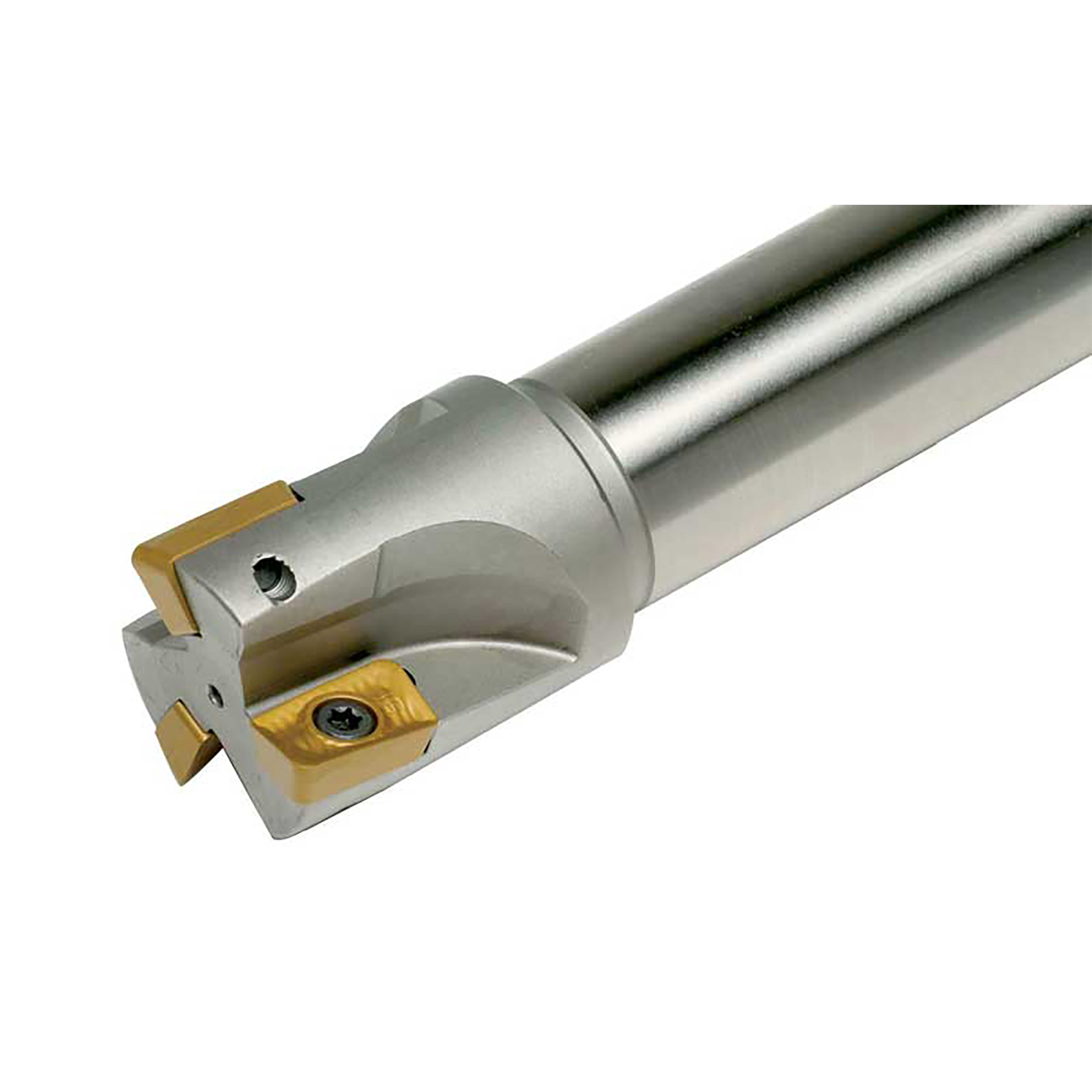

AP11-90 2150M 1.5" Diameter 90º Indexable End Mill
Specifications
| Shank Type | Weldon |
|---|---|
| Shank Diameter (Inch) | 1.25 |
| Cutting Diameter (Inch) | 1.5 |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Maximum Depth of Cut (Decimal Inch) : 0.433<br>• Number of Cutter Inserts : 5<br>• Insert Holding Method : Screw<br>• Insert Style : APXT11T3<br>• Head Length (Decimal Inch) : 1.654<br>• Axial Rake : 9º |
| Long Description | • Cutting Diameter (Decimal Inch): 1.5<br>• Shank Type: Weldon<br>• Shank Diameter (Decimal Inch): 1.25<br>• Overall Length (Decimal Inch): 5.118<br>• Through Coolant: No<br>Indexable end mill for Slotting, Shoulder milling and plane milling. Outstanding chip control and prominent machining in Medium and Roughing by Coated insert combined Toughness with Wear Resistance and designed 3 dimension chip breaker |
| Through Coolant | No |
| Overall Length (Decimal Inch) | 5.118 |
