Sowa Tool
147190

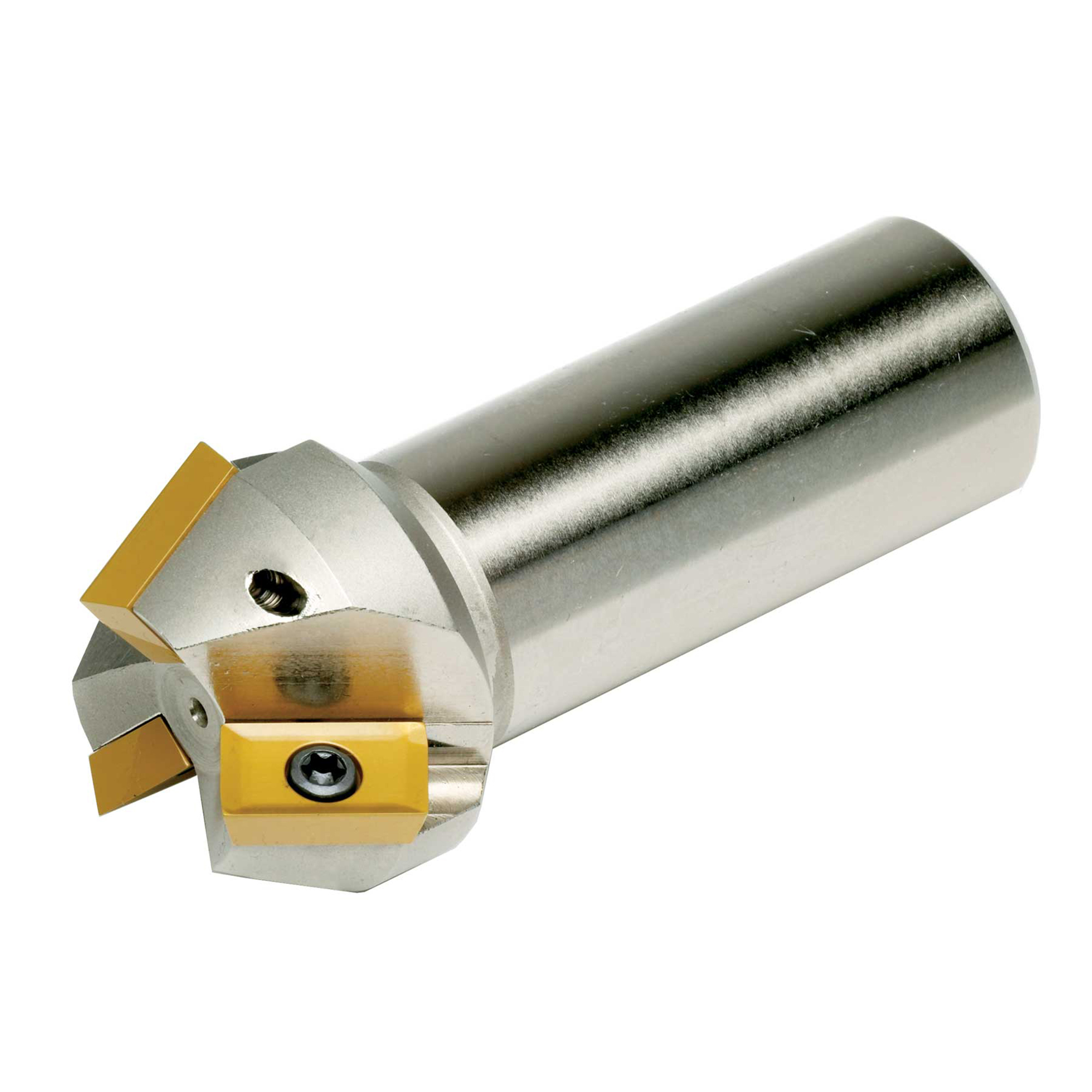

AP16-CHM 500-60º Indexable Chamfer Mill
Specifications
| Long Description | • Shank Type: Weldon<br>• Minimum Cutting Diameter (Decimal Inch): 0.5<br>• Maximum Cutting Diameter (Decimal Inch): 1.458<br>• Shank Diameter (Decimal Inch): 0.75<br>• Lead Angle: 60<br>• Included Angle: 120<br>• Insert Style: APKT 1604<br>• Series: AP16<br>• Through Coolant: No<br>• Indexable Chamfering<br>• Outstanding chip control and prominent machining in Medium and Roughing by Coated insert combined Toughness with Wear Resistance.<br>• Distinguished improvement of Productivity by cutting speed 3~4 times as fast as Brazed end mill |
|---|---|
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Maximum Depth of Cut (Decimal Inch) : 0.277<br>• Number of Cutter Inserts : 2<br>• Insert Holding Method : Screw |
| Shank Type | Weldon |
| Through Coolant | No |
| Shank Diameter (Inch) | 0.75 |
| Insert Style | APKT 1604 |
| Minimum Cutting Diameter (Inch) | 0.5 |
| Series | AP16 |
| Maximum Cutting Diameter (Inch) | 1.458 |
| Included Angle | 120 |
