Sowa Tool
147225

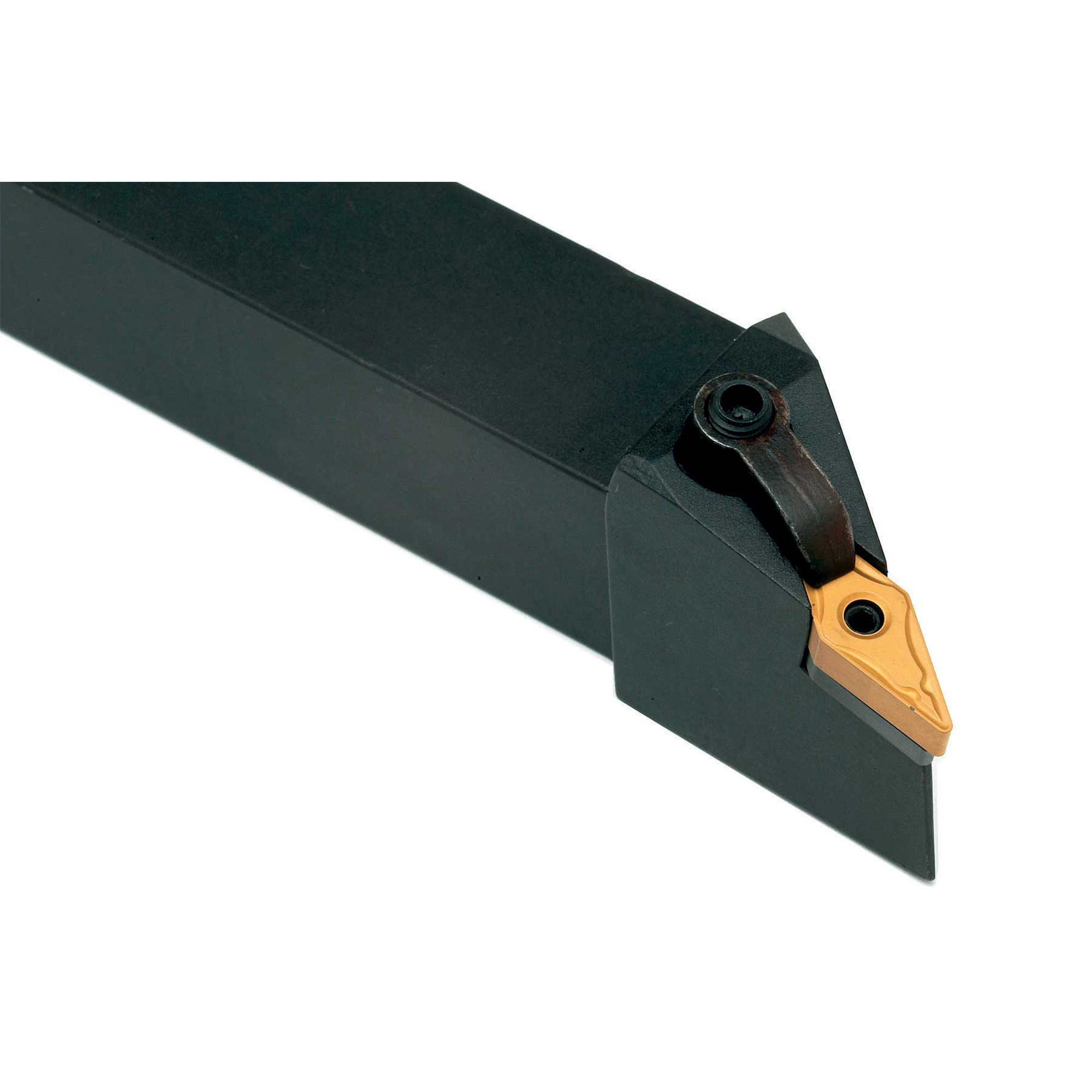

MVJNL 20-4D External Turning Toolholder
Specifications
| Toolholder Style | MVJNL |
|---|---|
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Insert Holding Method : Pin & Clamp<br>• Back of Bar to Cutting Edge (Decimal Inch) : 1.5<br>• Head Length (Decimal Inch) : 2<br>• Cutting Height (Decimal Inch) : 1.25 |
| Long Description | • Hand of Holder: Left Hand<br>• Toolholder Style: MVJNL<br>• Rake Angle: -7º<br>• Shank Width (Decimal Inch): 1.25<br>• Shank Height (Decimal Inch): 1.25<br>• Overall Length (Decimal Inch): 6<br>• Insert Compatibility: VN__ 43_<br> |
| Insert Compatibility | VN__ 43_ |
| Overall Length (Decimal Inch) | 6 |
| Shank Width (Inch) | 1.25 |
| Shank Height (Inch) | 1.25 |
