Sowa Tool
147298

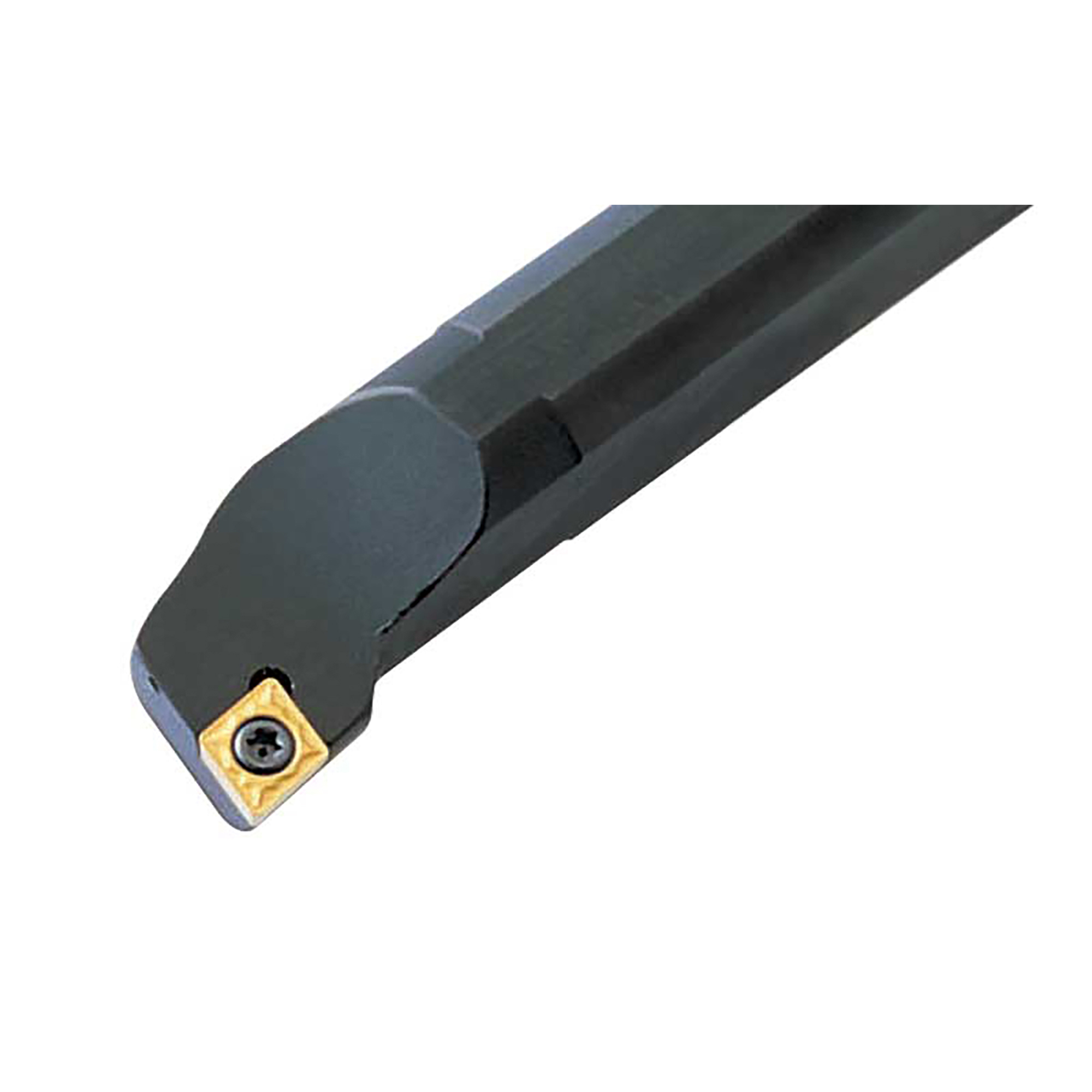

C08-SCLCR-2 Carbide Shank Indexable Boring Bar
Specifications
| Insert Compatibility | CC_T 21.5_ |
|---|---|
| Minimum Bore Diameter (Inch) | 0.6 |
| Shank Diameter (Inch) | 0.5 |
| Overall Length (Inch) | 5 |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Insert Holding Method : Screw<br>• Lead Angle : 10º<br>• Center to Cutting Edge (Decimal Inch) : 0.312<br>• Rake Angle : 0<br>• Shank Width Between Flats : 0.48 |
| Long Description | • Toolholder Style: SCLCR<br>• Minimum Bore Diameter (Decimal Inch): 0.6<br>• Hand of Holder: Right Hand<br>• Overall Length (Inch): 5<br>• Shank Diameter (Decimal Inch): 0.5<br>• Insert Compatibility: CC_T 21.5_<br>• Through Coolant: No<br> |
| Through Coolant | No |
| Toolholder Style | SCLCR |
