Sowa Tool
147543

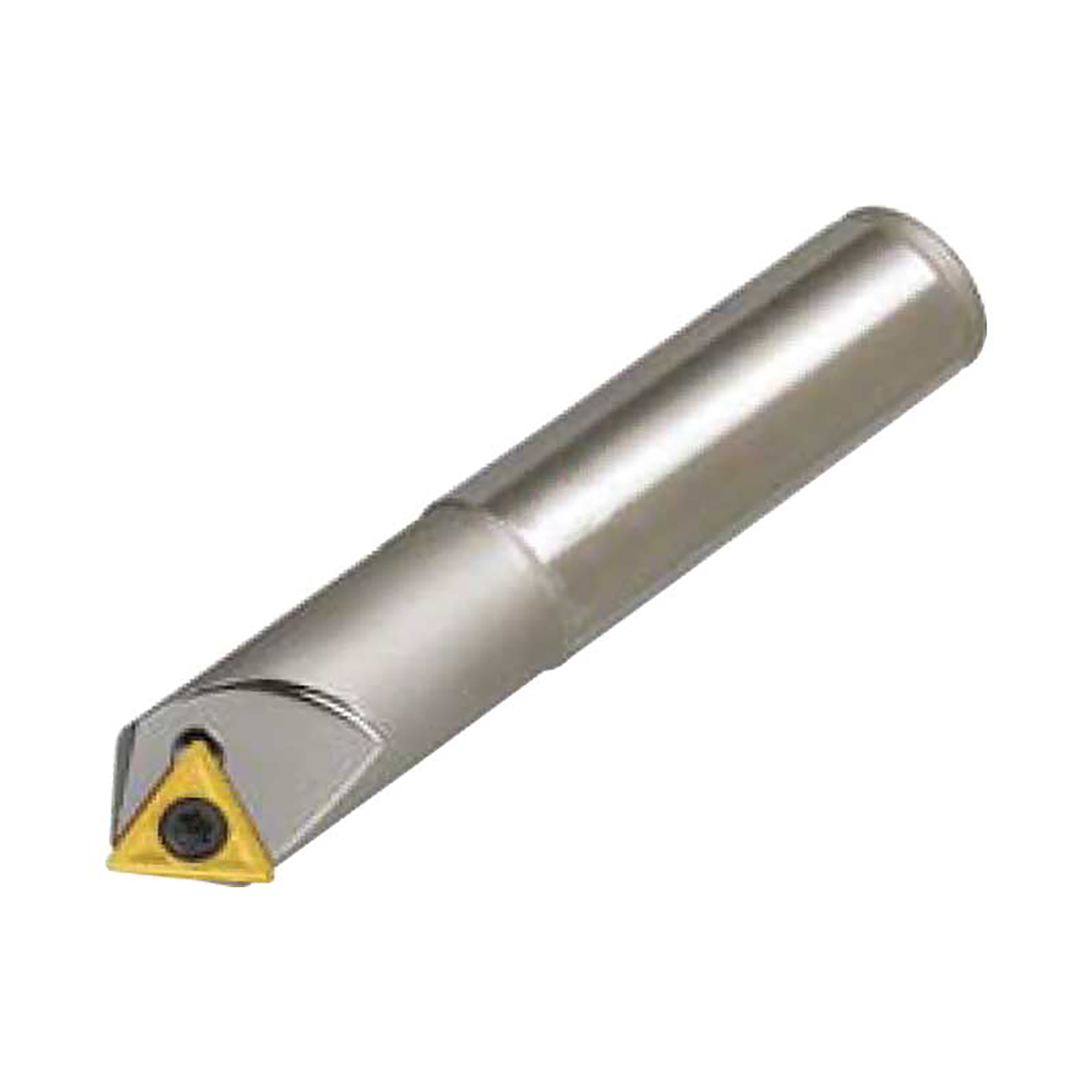

CTP45-1600R-S050 0.870x3.5 45º Indexable Chamfer Mill
Specifications
| Long Description | • Shank Type: Cylindrical<br>• Cutting Diameter (Decimal Inch): 0.87<br>• Maximum Cutting Diameter (Decimal Inch): 0.87<br>• Shank Diameter (Decimal Inch): 0.5<br>• Lead Angle: 45<br>• Included Angle: 90<br>• Insert Style: TWX16R-KC<br>• Series: CTP45<br>• Through Coolant: No<br>• Overall Length (Decimal Inch): 3.5<br>• Centering<br>• Grooving<br>• Chamfering |
|---|---|
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Maximum Depth of Cut (Decimal Inch) : 0.4<br>• Number of Cutter Inserts : 1<br>• Insert Holding Method : Screw<br>• Head Length (Decimal Inch) : 1.6 |
| Shank Type | Cylindrical |
| Through Coolant | No |
| Overall Length (Decimal Inch) | 3.5 |
| Shank Diameter (Inch) | 0.5 |
| Insert Style | TWX16R-KC |
| Series | CTP45 |
| Maximum Cutting Diameter (Inch) | 0.87 |
| Included Angle | 90 |
| Cutting Diameter (Inch) | 0.87 |
