Sowa Tool
147623

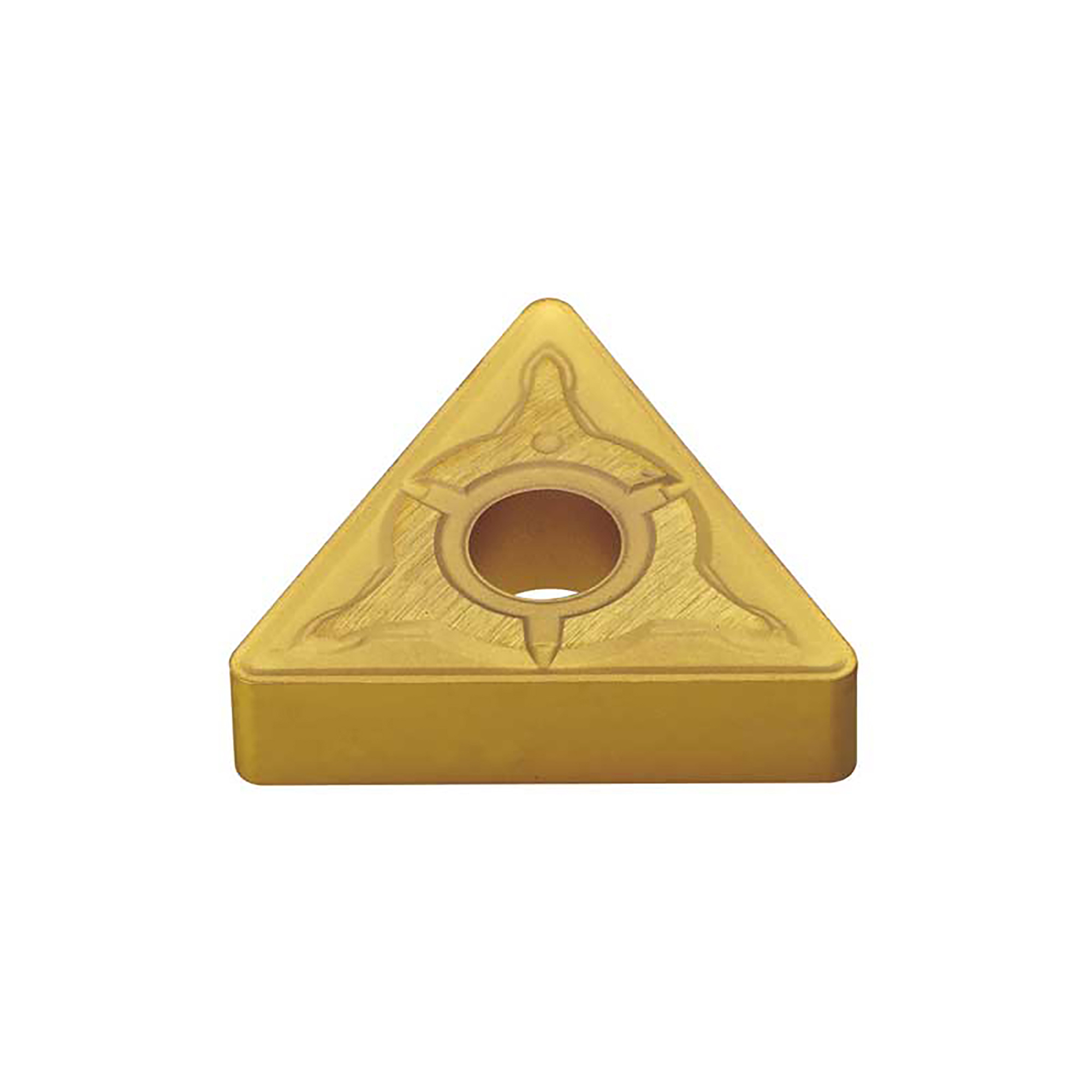

TNMG432-R2 PT30C Carbide Negative Turning Insert
Specifications
| Material | Carbide |
|---|---|
| Corner Radius (Inch) | 1/32" |
| Thickness (Inch) | 3/16" |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Relief Angle : 0<br>• Chip Breaker : R2 |
| Long Description | • Insert Style: TNMG<br>• Insert Size: 432<br>• Material: Carbide<br>• Inscribed Circle (Inch): 1/2<br>• Length (Decimal Inch): 0.866<br>• Thickness (Inch): 3/16"<br>• Corner Radius (Inch): 1/32"<br>• Manufacturer's Grade: PT30C<br>• Suitable for heavy duty cutting due to strong cutting edge • Wide chip control range with low cutting force |
| Length (Inch) | 0.866 |
| Insert Style | TNMG |
| Insert Size | 432 |
