Sowa Tool
147641

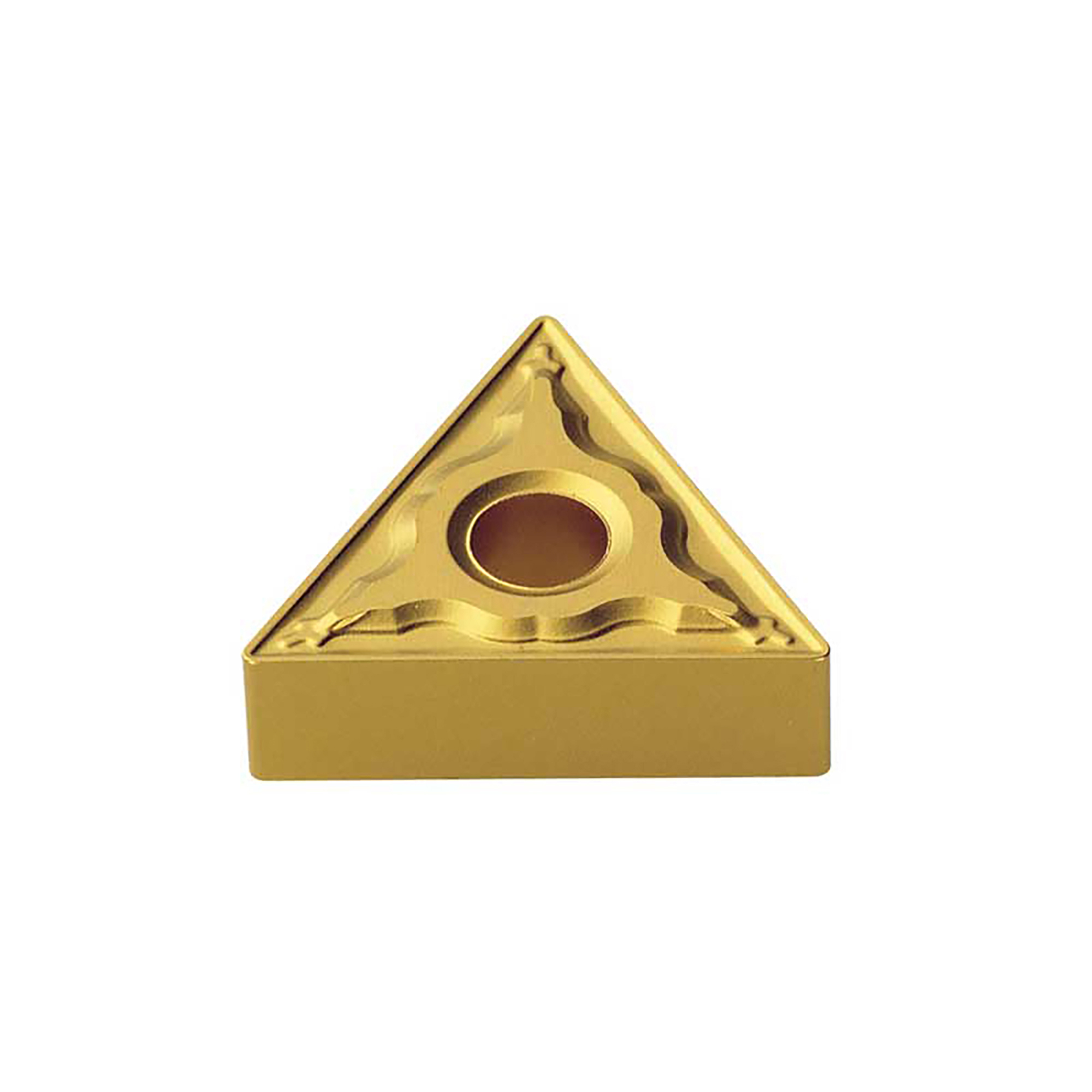

TNMG332-M PT30C Carbide Negative Turning Insert
Specifications
| Material | Carbide |
|---|---|
| Corner Radius (Inch) | 1/32" |
| Thickness (Inch) | 3/16" |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Relief Angle : 0<br>• Material Grade : C5, C5-C6<br>• Chip Breaker : M<br>• ISO Size : 160408 |
| Long Description | • Insert Style: TNMG<br>• Insert Size: 332<br>• Material: Carbide<br>• Inscribed Circle (Inch): 3/8"<br>• Length (Decimal Inch): 0.65<br>• Thickness (Inch): 3/16"<br>• Corner Radius (Inch): 1/32"<br>• Manufacturer's Grade: PT30C<br>• Wide available chip control range from medium-finishing to medium-roughing. • Suitable chip breaker for CNC machining |
| Length (Inch) | 0.65 |
| Insert Style | TNMG |
| Insert Size | 332 |
