Sowa Tool
147662

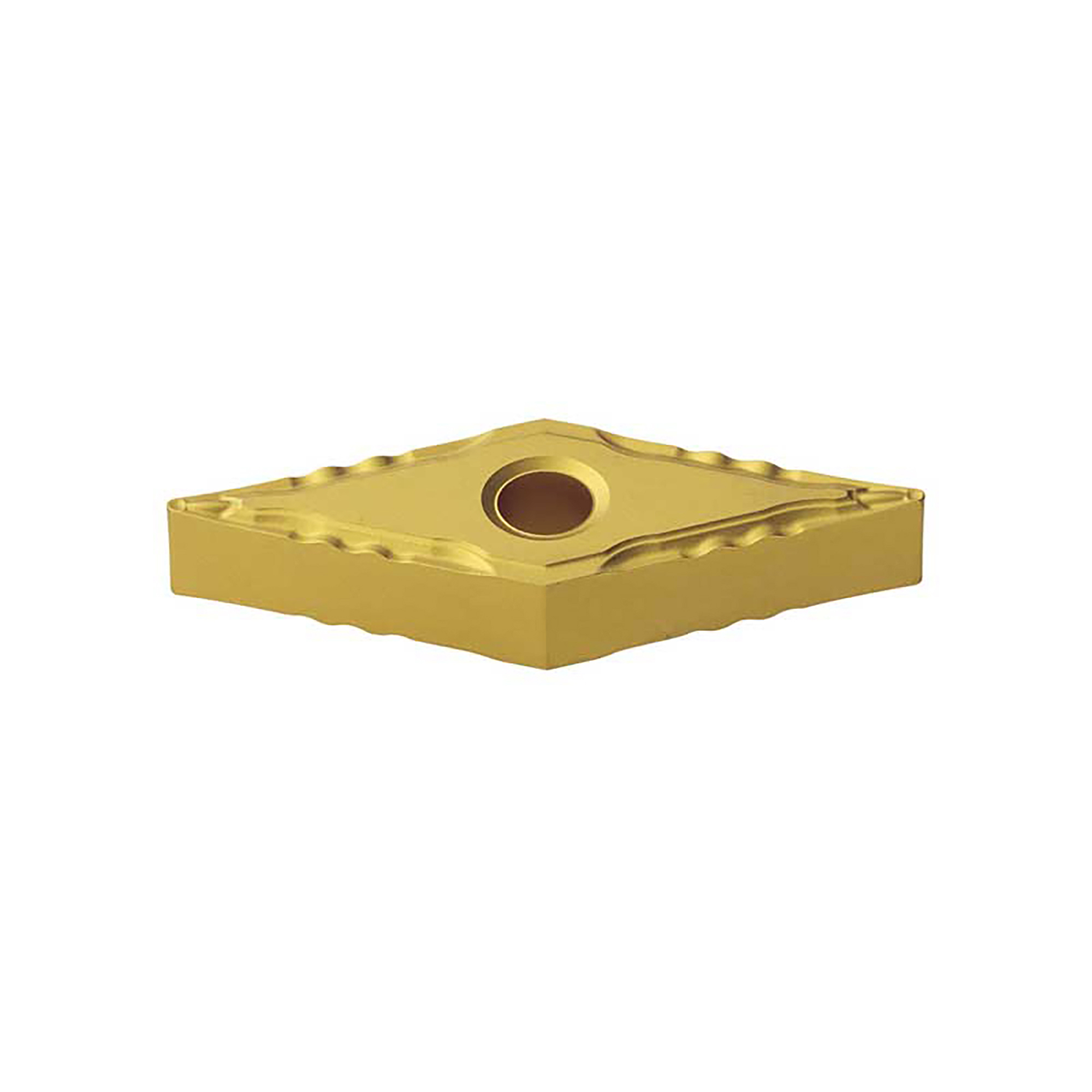

VNMG332-F2 PT20S Cermet Negative Turning Insert
Specifications
| Material | Cermet |
|---|---|
| Corner Radius (Inch) | 1/32" |
| Thickness (Inch) | 3/16" |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Relief Angle : 0<br>• Material Grade : C5-C6, C6<br>• Chip Breaker : F2<br>• ISO Size : 160408 |
| Long Description | • Insert Style: VNMG<br>• Insert Size: 332<br>• Material: Cermet<br>• Inscribed Circle (Inch): 3/8"<br>• Length (Decimal Inch): 0.654<br>• Thickness (Inch): 3/16"<br>• Corner Radius (Inch): 1/32"<br>• Manufacturer's Grade: PT20S<br>• Excellent chip control at varied depth of cutting. • Strong cutting edge toughness due to special design |
| Length (Inch) | 0.654 |
| Insert Style | VNMG |
| Insert Size | 332 |
