Sowa Tool
147932

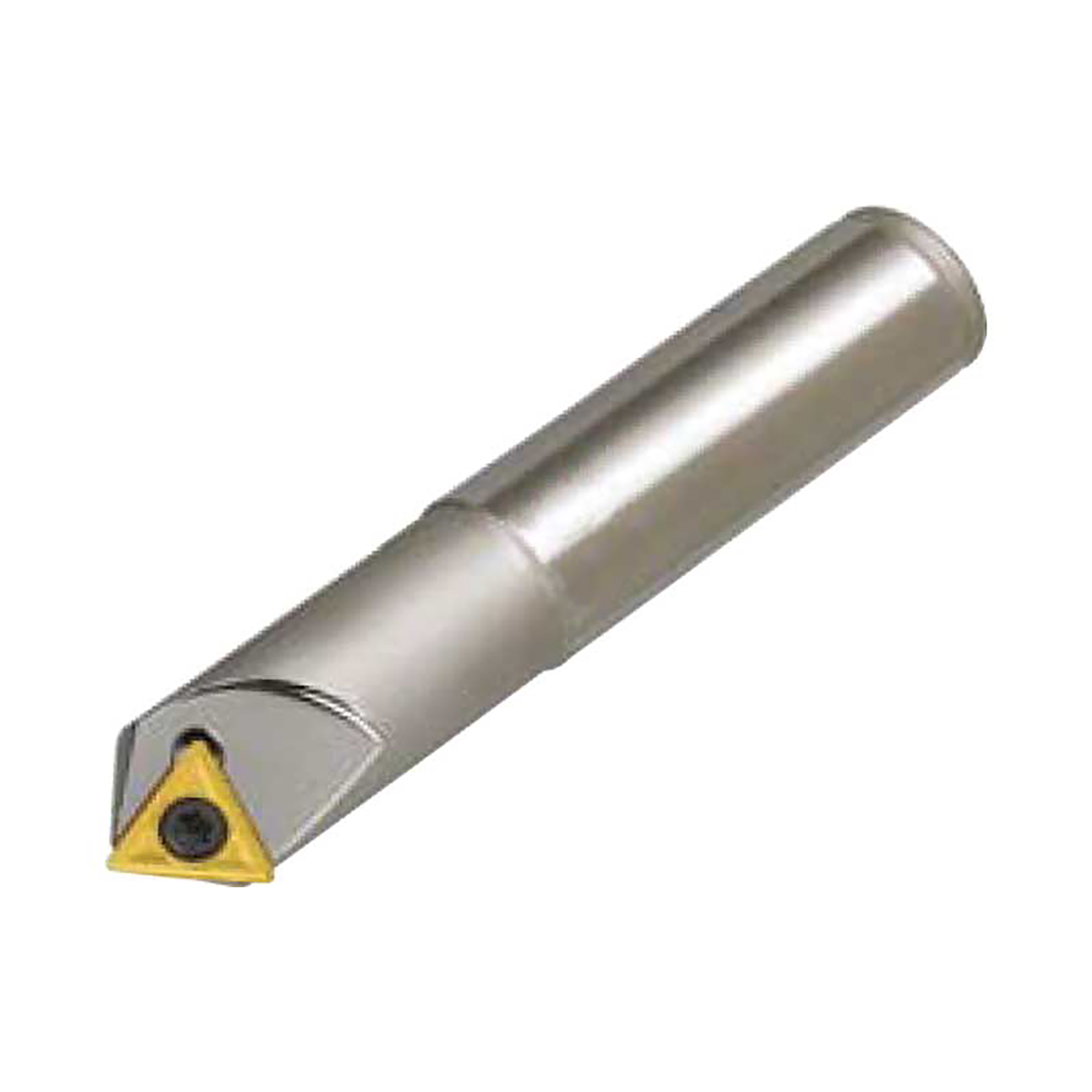

CTP45-2200R-L100 1.14x8.0 45º Indexable Chamfer Mill
Specifications
| Cutting Diameter (Inch) | 1.14 |
|---|---|
| Shank Diameter (Inch) | 1 |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Maximum Depth of Cut (Decimal Inch) : 0.6<br>• Number of Cutter Inserts : 1<br>• Insert Holding Method : Screw<br>• Head Length (Decimal Inch) : 2.4 |
| Shank Type | Cylindrical |
| Series | CTP45 |
| Long Description | • Shank Type: Cylindrical<br>• Cutting Diameter (Decimal Inch): 1.14<br>• Maximum Cutting Diameter (Decimal Inch): 1.14<br>• Shank Diameter (Decimal Inch): 1<br>• Lead Angle: 45<br>• Included Angle: 90<br>• Insert Style: TWX22R-KC<br>• Series: CTP45<br>• Through Coolant: No<br>• Overall Length (Decimal Inch): 8<br>• Centering<br>• Grooving<br>• Chamfering |
| Included Angle | 90 |
| Through Coolant | No |
| Overall Length (Decimal Inch) | 8 |
| Insert Style | TWX22R-KC |
| Maximum Cutting Diameter (Inch) | 1.14 |
