Sowa Tool
148083

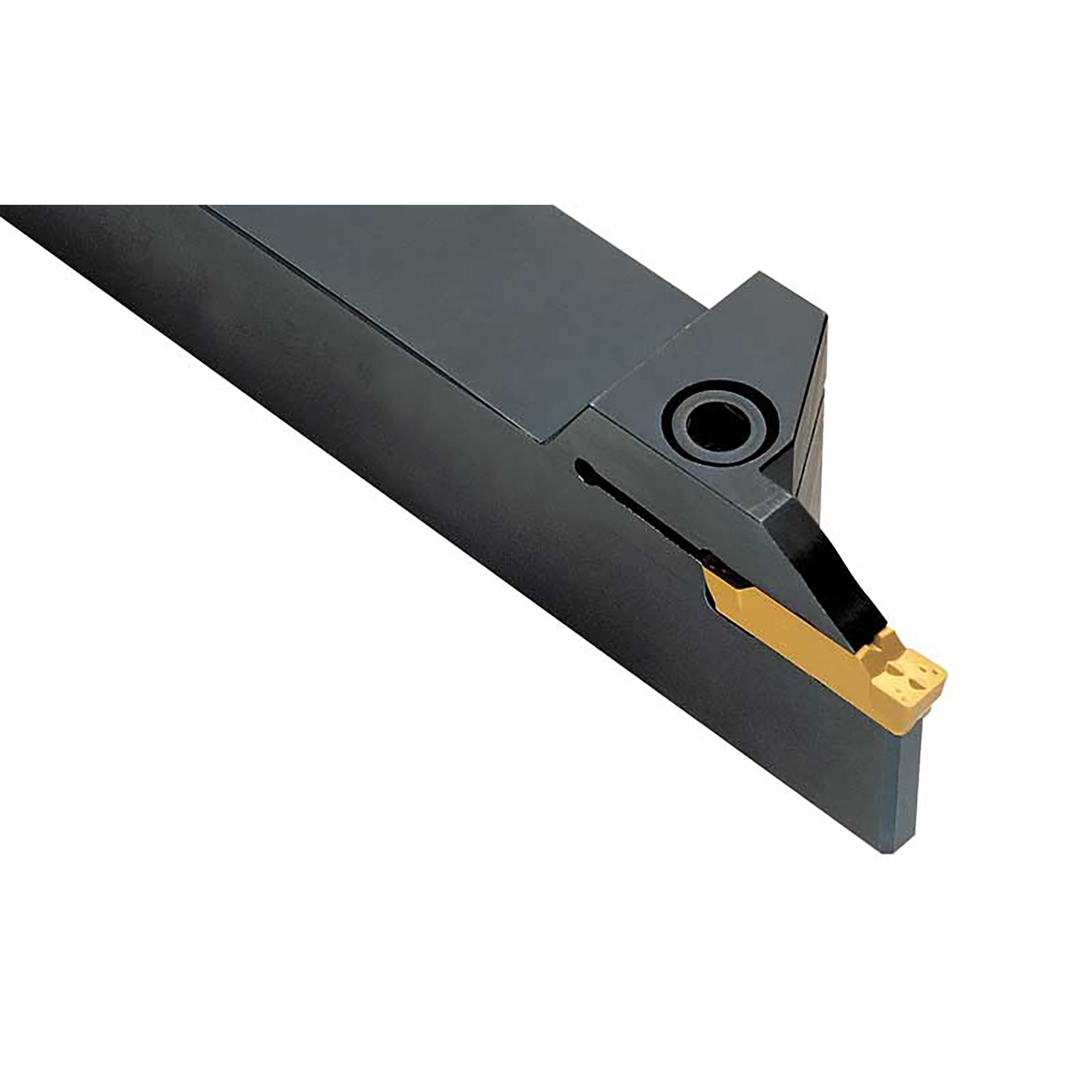

MGEHL 20-4-T03 1.25" x 1.25" x 6.7" Multi Turning Grooving External Holder
Specifications
| Long Description | • Internal or External: External<br>• Hand of Holder: Left Hand<br>• Maximum Depth of Cut (Decimal Inch): 0.39<br>• Minimum Groove Width (Decimal Inch): 0.157<br>• Overall Length (Decimal Inch): 6.693<br>• Toolholder Style: MGEHL<br>• Insert Compatibility: MGMN400-M, MRMN400-M<br>• Shank Height (Decimal Inch): 1.25<br>• Shank Width/Diameter (Decimal Inch): 1.25<br>• Through Coolant: No<br> |
|---|---|
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Insert Holding Method : Clamp<br>• Back Of Holder To Cutting Edge (Decimal Inch) : 1.264 |
| Through Coolant | No |
| Overall Length (Decimal Inch) | 6.693 |
| Insert Compatibility | MGMN400-M, MRMN400-M |
| Toolholder Style | MGEHL |
| Shank Height (Inch) | 1.25 |
