Sowa Tool
148119

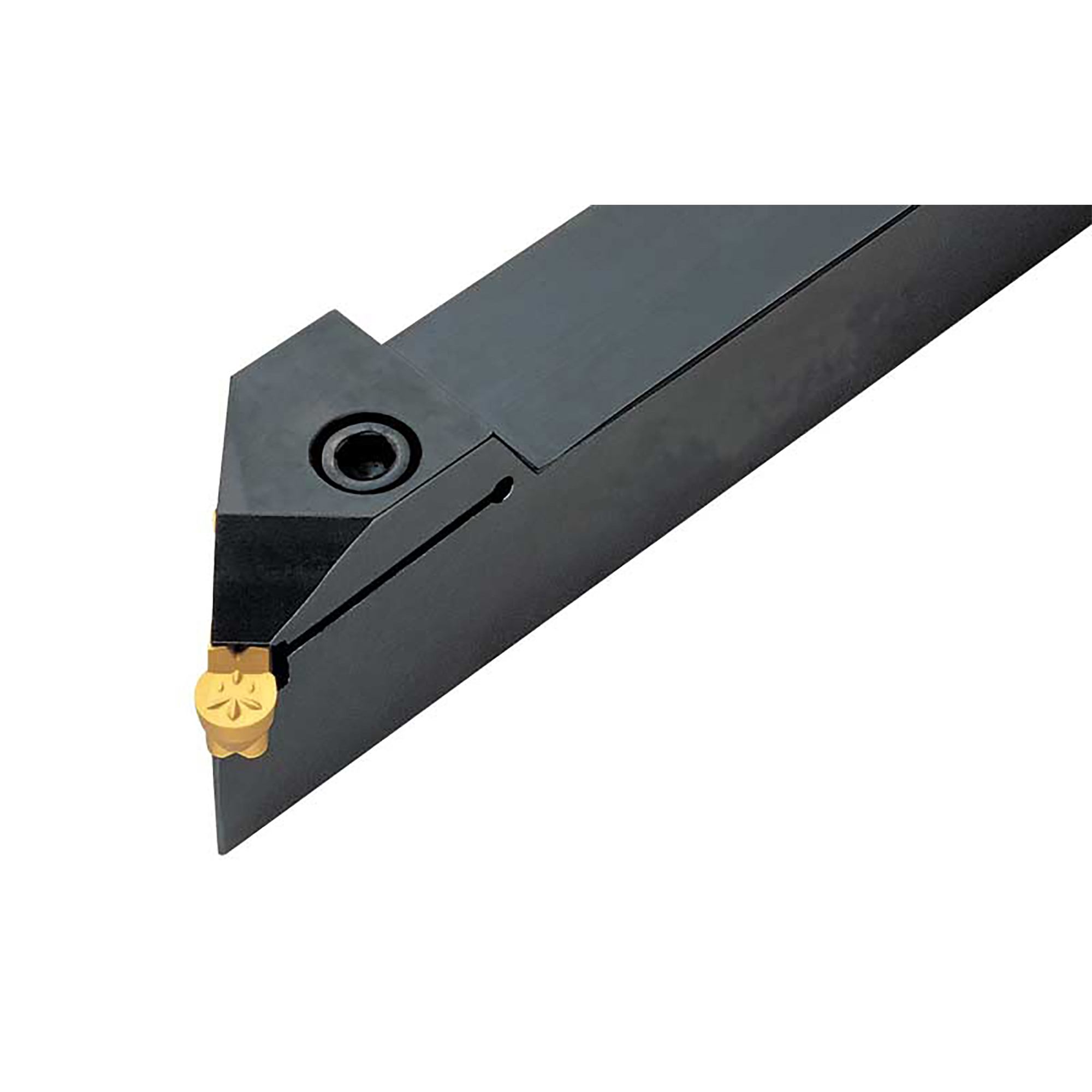

MGEUR 16-6 1" x 1" x 5.9" Multi Turning Grooving External Holder
Specifications
| Long Description | • Internal or External: External<br>• Hand of Holder: Right Hand<br>• Maximum Depth of Cut (Decimal Inch): 0.27<br>• Minimum Groove Width (Decimal Inch): 0.236<br>• Overall Length (Decimal Inch): 5.906<br>• Toolholder Style: MGEUR<br>• Insert Compatibility: MRMN600-M<br>• Shank Height (Decimal Inch): 1<br>• Shank Width/Diameter (Decimal Inch): 1<br>• Through Coolant: No<br> |
|---|---|
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Insert Holding Method : Clamp<br>• Back Of Holder To Cutting Edge (Decimal Inch) : 1.276 |
| Through Coolant | No |
| Overall Length (Decimal Inch) | 5.906 |
| Insert Compatibility | MRMN600-M |
| Toolholder Style | MGEUR |
| Shank Height (Inch) | 1 |
