Sowa Tool
148245

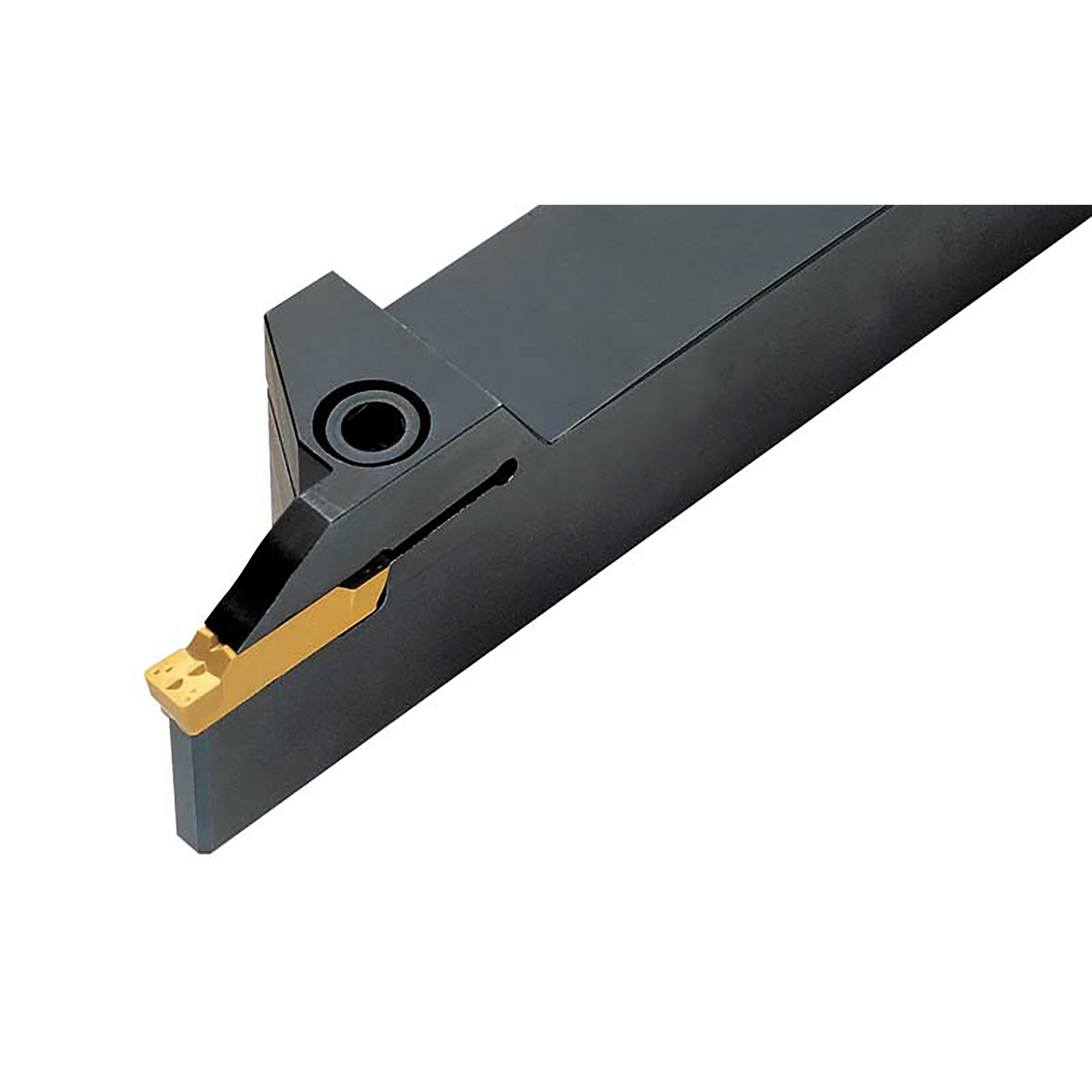

MGEHR 16-2 1" x 1" x 5.9" Multi Turning Grooving External Holder
Specifications
| Long Description | • Internal or External: External<br>• Hand of Holder: Right Hand<br>• Maximum Depth of Cut (Decimal Inch): 0.47<br>• Minimum Groove Width (Decimal Inch): 0.079<br>• Overall Length (Decimal Inch): 5.906<br>• Toolholder Style: MGEHR<br>• Insert Compatibility: MGMN200-G/M<br>• Shank Height (Decimal Inch): 1<br>• Shank Width/Diameter (Decimal Inch): 1<br>• Through Coolant: No<br> |
|---|---|
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Insert Holding Method : Clamp<br>• Back Of Holder To Cutting Edge (Decimal Inch) : 1.01 |
| Through Coolant | No |
| Overall Length (Decimal Inch) | 5.906 |
| Insert Compatibility | MGMN200-G/M |
| Toolholder Style | MGEHR |
| Shank Height (Inch) | 1 |
