Sowa Tool
148626

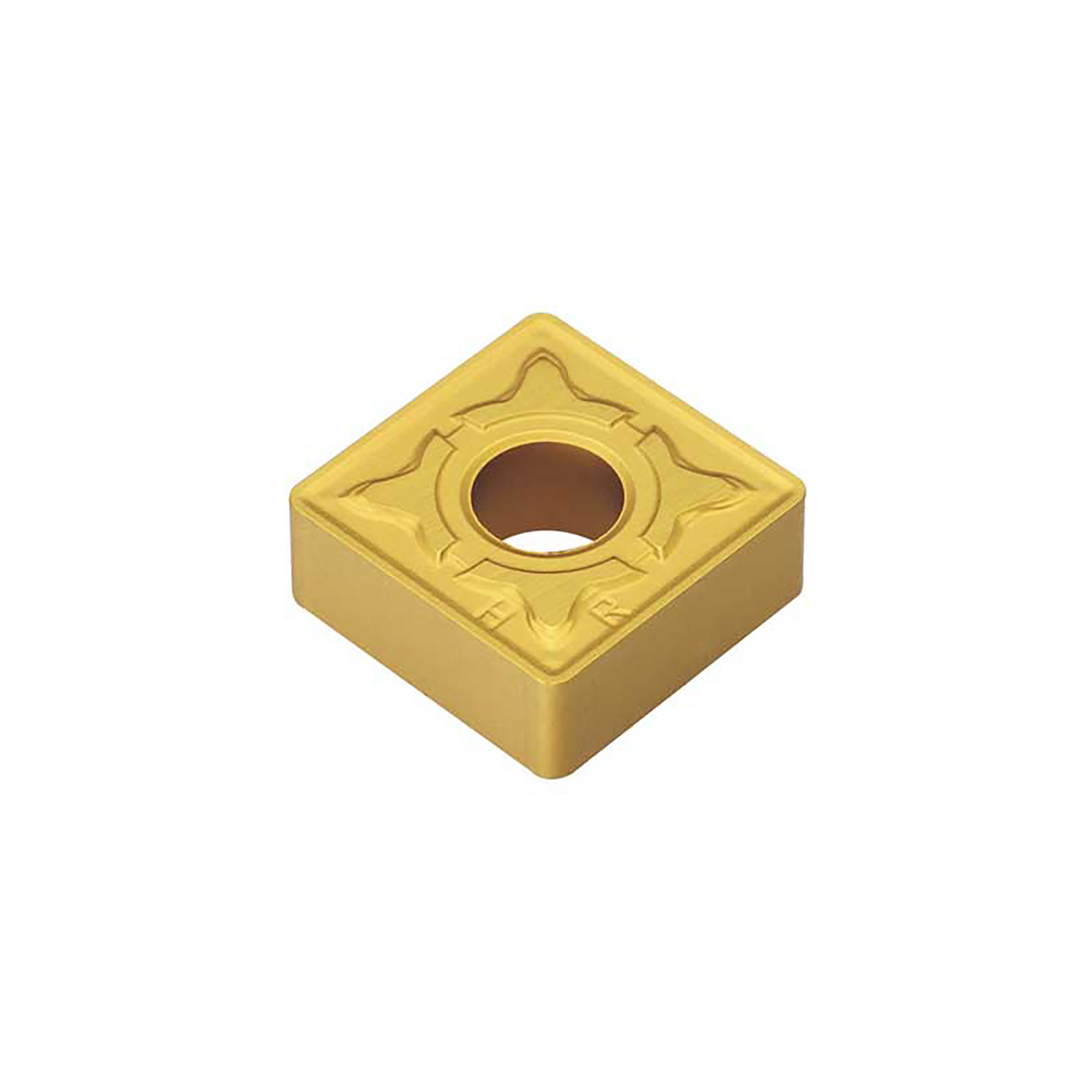

SNMG 643 - R2 PT40C Carbide Turning Insert
Specifications
| Material | Carbide |
|---|---|
| Corner Radius (Inch) | 3/64" |
| Thickness (Inch) | 1/4" |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Relief Angle : 0<br>• Chip Breaker : R2<br>• ISO Size : 190612 |
| Long Description | • Insert Style: SNMG<br>• Insert Size: 643<br>• Material: Carbide<br>• Inscribed Circle (Inch): 3/4"<br>• Length (Inch): 3/4"<br>• Thickness (Inch): 1/4"<br>• Corner Radius (Inch): 3/64"<br>• Manufacturer's Grade: PT40C<br>• Suitable for heavy duty cutting due to strong cutting edge • Wide chip control range with low cutting force |
| Length (Inch) | 3/4" |
| Insert Style | SNMG |
| Insert Size | 643 |
