Sowa Tool
148812

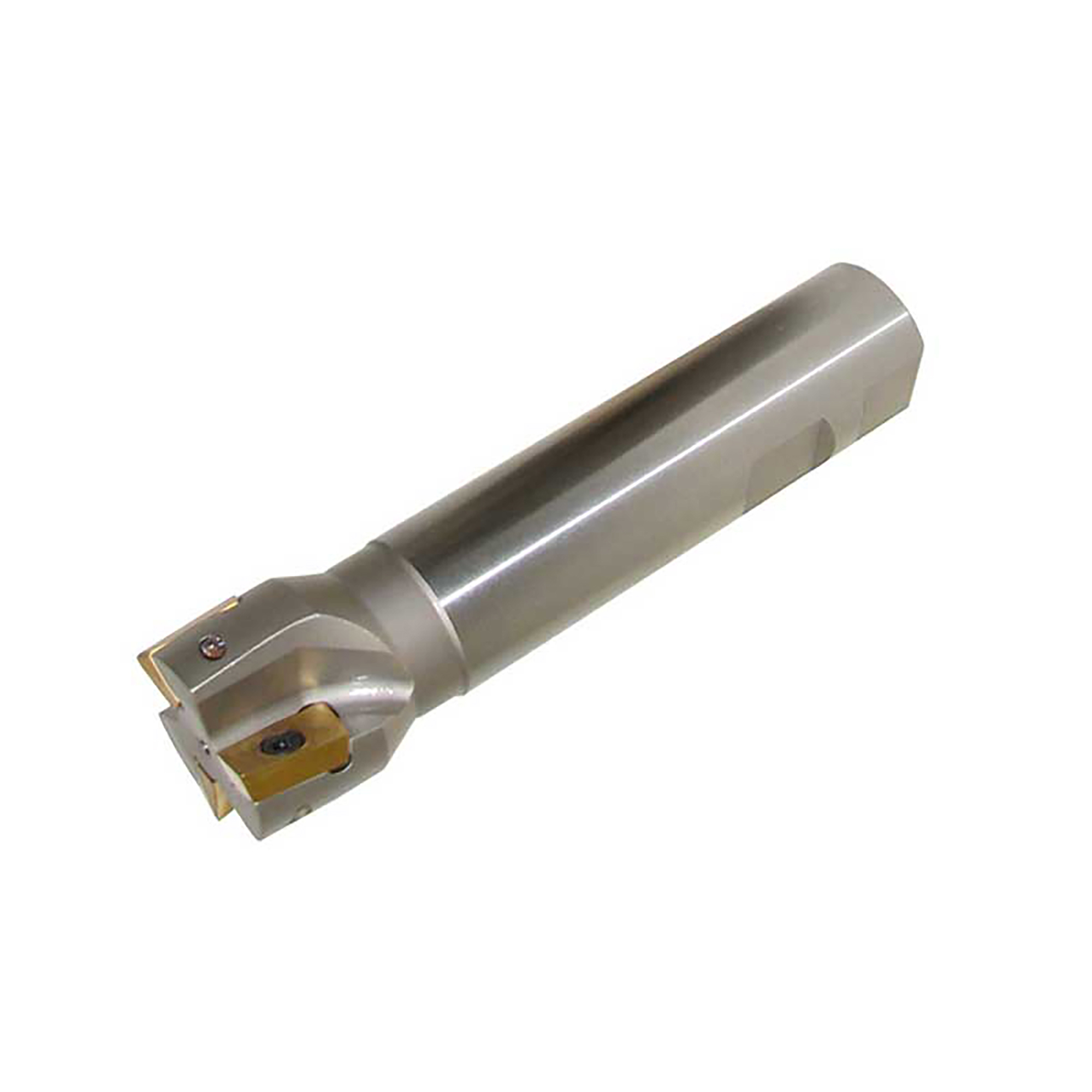

AP16-90 3100S 1" Diameter 90º End Mill w/ H13 Hardened Body (48HRC)
Specifications
| Shank Type | Weldon |
|---|---|
| Shank Diameter (Inch) | 1 |
| Cutting Diameter (Inch) | 1 |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Maximum Depth of Cut (Decimal Inch) : 0.63<br>• Number of Cutter Inserts : 2<br>• Insert Holding Method : Screw<br>• Insert Style : AP_T 1604<br>• Head Length (Decimal Inch) : 1.378<br>• Axial Rake : 9º |
| Long Description | • Cutting Diameter (Decimal Inch): 1<br>• Shank Type: Weldon<br>• Shank Diameter (Decimal Inch): 1<br>• Overall Length (Decimal Inch): 4.528<br>• Through Coolant: No<br>H13 hardened cutter bodies (48HRC)<br>• Longer insert life<br>• Longer body life<br>• Higher rigidity<br>• Better feed rates |
| Through Coolant | No |
| Overall Length (Decimal Inch) | 4.528 |
