Sowa Tool
149177

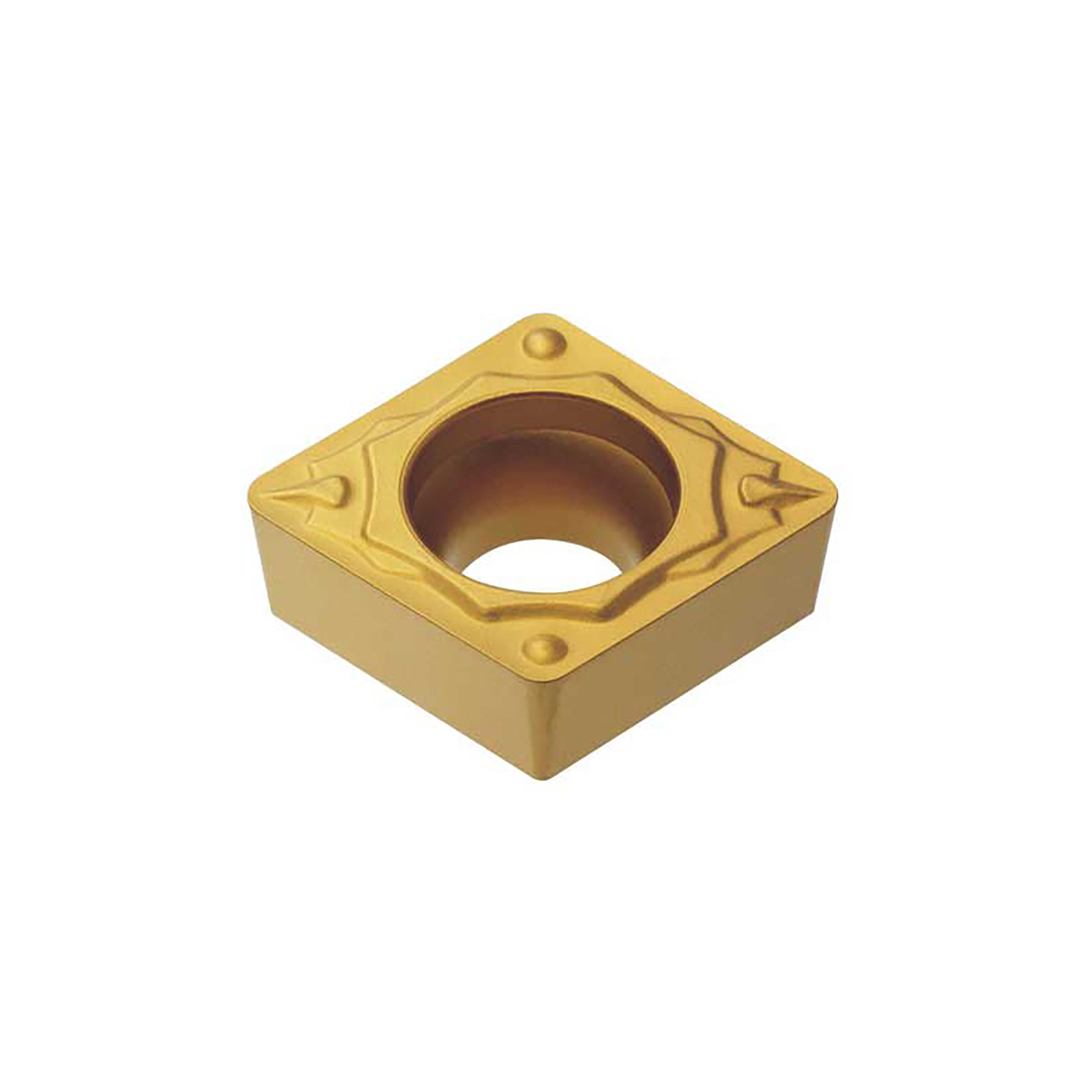

CCGT32.51-F1P PT20S Cermet Positive Turning Insert
Specifications
| Material | Cermet |
|---|---|
| Corner Radius (Inch) | 1/64" |
| Thickness (Inch) | 5/32" |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Relief Angle : 7<br>• Material Grade : C5-C6, C6<br>• Chip Breaker : F1P<br>• ISO Size : 09T304 |
| Long Description | • Insert Style: CCGT<br>• Insert Size: 32.51<br>• Material: Cermet<br>• Inscribed Circle (Inch): 3/8"<br>• Length (Decimal Inch): 0.382<br>• Thickness (Inch): 5/32"<br>• Corner Radius (Inch): 1/64"<br>• Manufacturer's Grade: PT20S<br>• Excellent chip control at shallow depth of cut and low feed rate. • Excellent surface finish of work piece due to reduced cutting force. • Suitable for fine boring |
| Length (Inch) | 0.382 |
| Insert Style | CCGT |
| Insert Size | 32.51 |
