Sowa Tool
149231

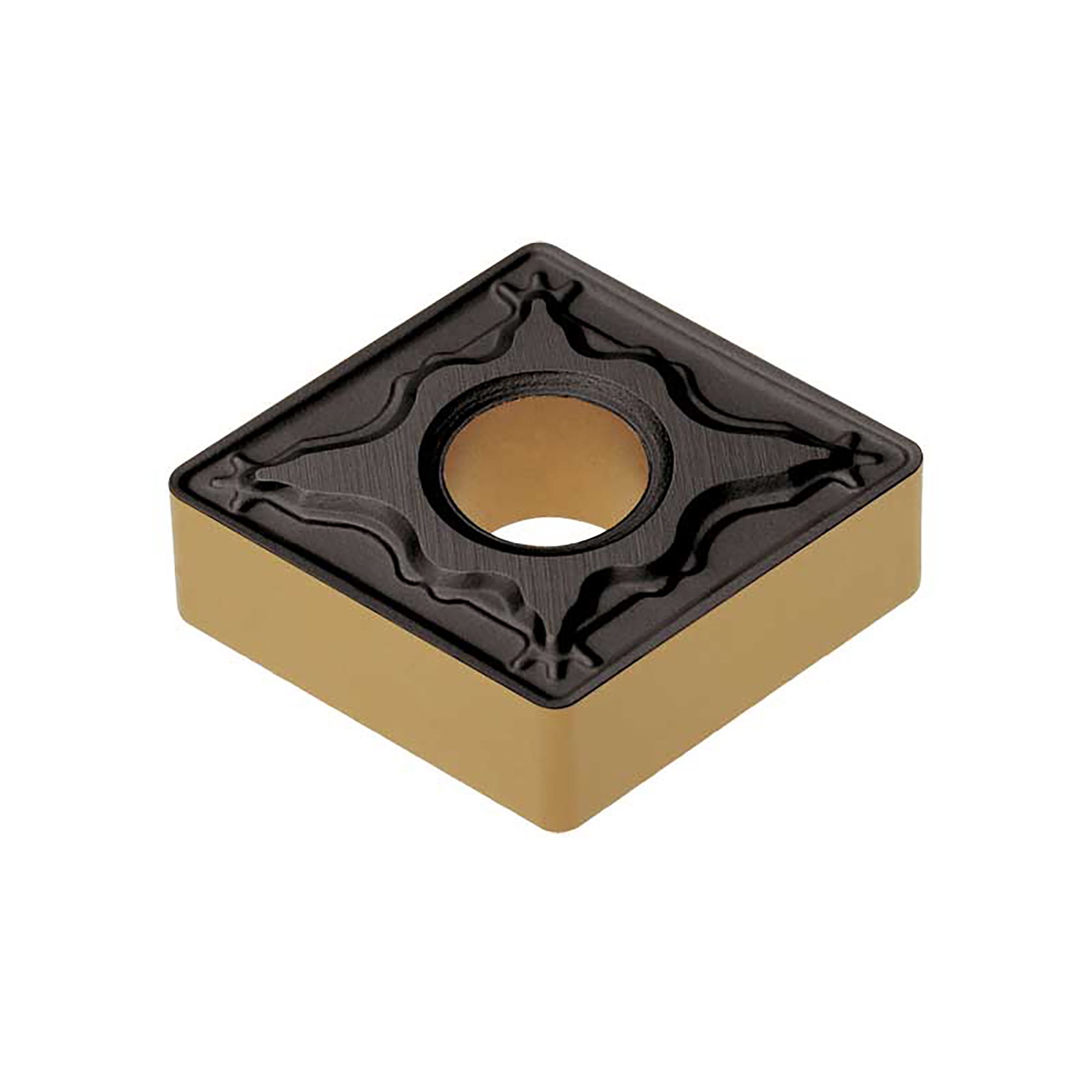

CNMG 432 - M PT25C Carbide Turning Insert
Specifications
| Material | Carbide |
|---|---|
| Corner Radius (Inch) | 1/32" |
| Thickness (Inch) | 3/16" |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Relief Angle : 0<br>• Material Grade : C5-C6, C6<br>• Chip Breaker : M<br>• ISO Size : 120408 |
| Long Description | • Insert Style: CNMG<br>• Insert Size: 432<br>• Material: Carbide<br>• Inscribed Circle (Inch): 1/2"<br>• Length (Decimal Inch): 0.508<br>• Thickness (Inch): 3/16"<br>• Corner Radius (Inch): 1/32"<br>• Manufacturer's Grade: PT25C<br>• Wide available chip control range from medium-finishing to medium-roughing. • Suitable chip breaker for CNC machining |
| Length (Inch) | 0.508 |
| Insert Style | CNMG |
| Insert Size | 432 |
