Sowa Tool
149393

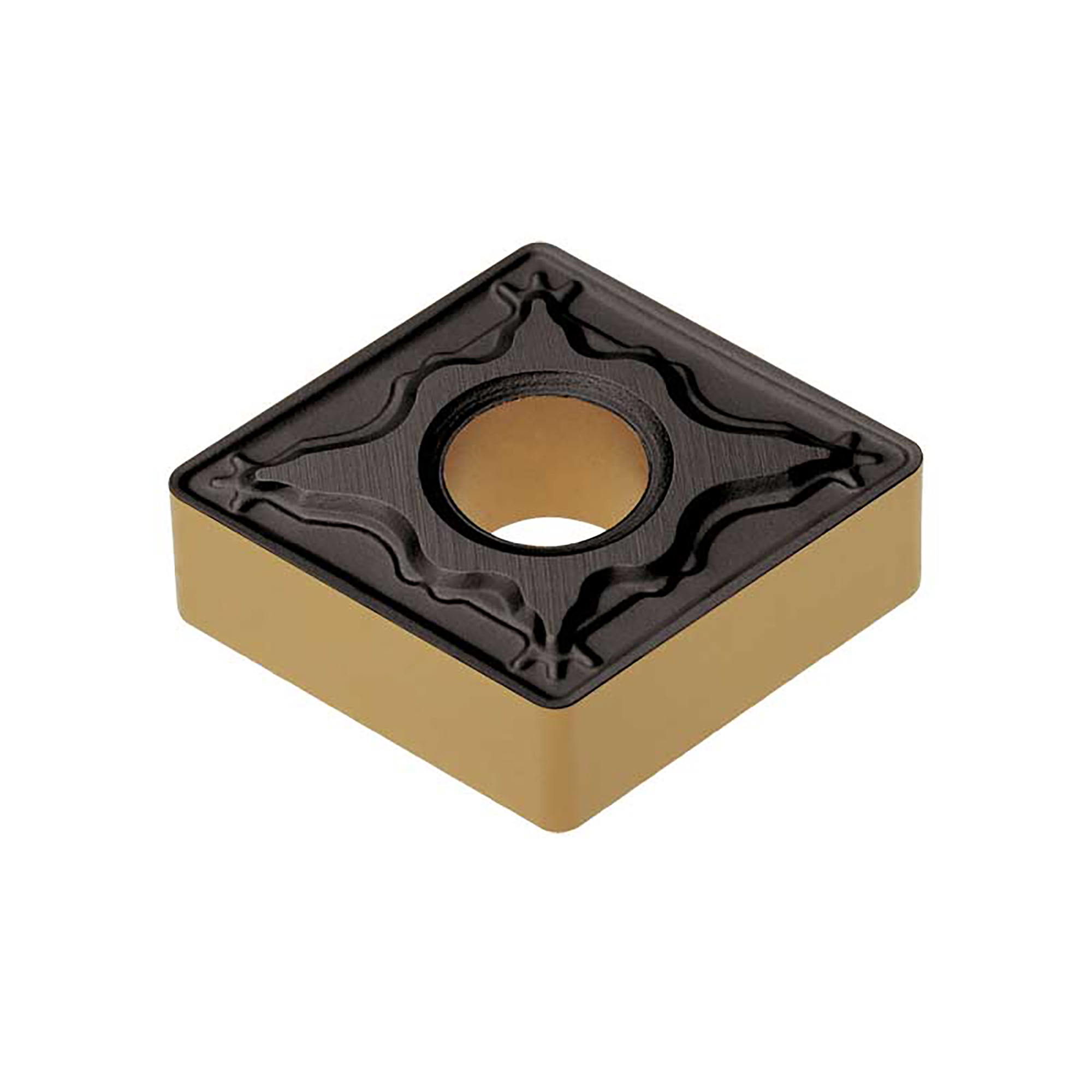

CNMG 432 - M1 PT15C Carbide Turning Insert
Specifications
| Material | Carbide |
|---|---|
| Corner Radius (Inch) | 1/32" |
| Thickness (Inch) | 3/16" |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Relief Angle : 0<br>• Material Grade : C3, C6-C7<br>• Chip Breaker : M1<br>• ISO Size : 120408 |
| Long Description | • Insert Style: CNMG<br>• Insert Size: 432<br>• Material: Carbide<br>• Inscribed Circle (Inch): 1/2"<br>• Length (Decimal Inch): 0.508<br>• Thickness (Inch): 3/16"<br>• Corner Radius (Inch): 1/32"<br>• Manufacturer's Grade: PT15C<br>• Wide available chip control range from medium-finishing to medium-roughing. • Suitable chip breaker for CNC machining |
| Length (Inch) | 0.508 |
| Insert Style | CNMG |
| Insert Size | 432 |
