Sowa Tool
149499

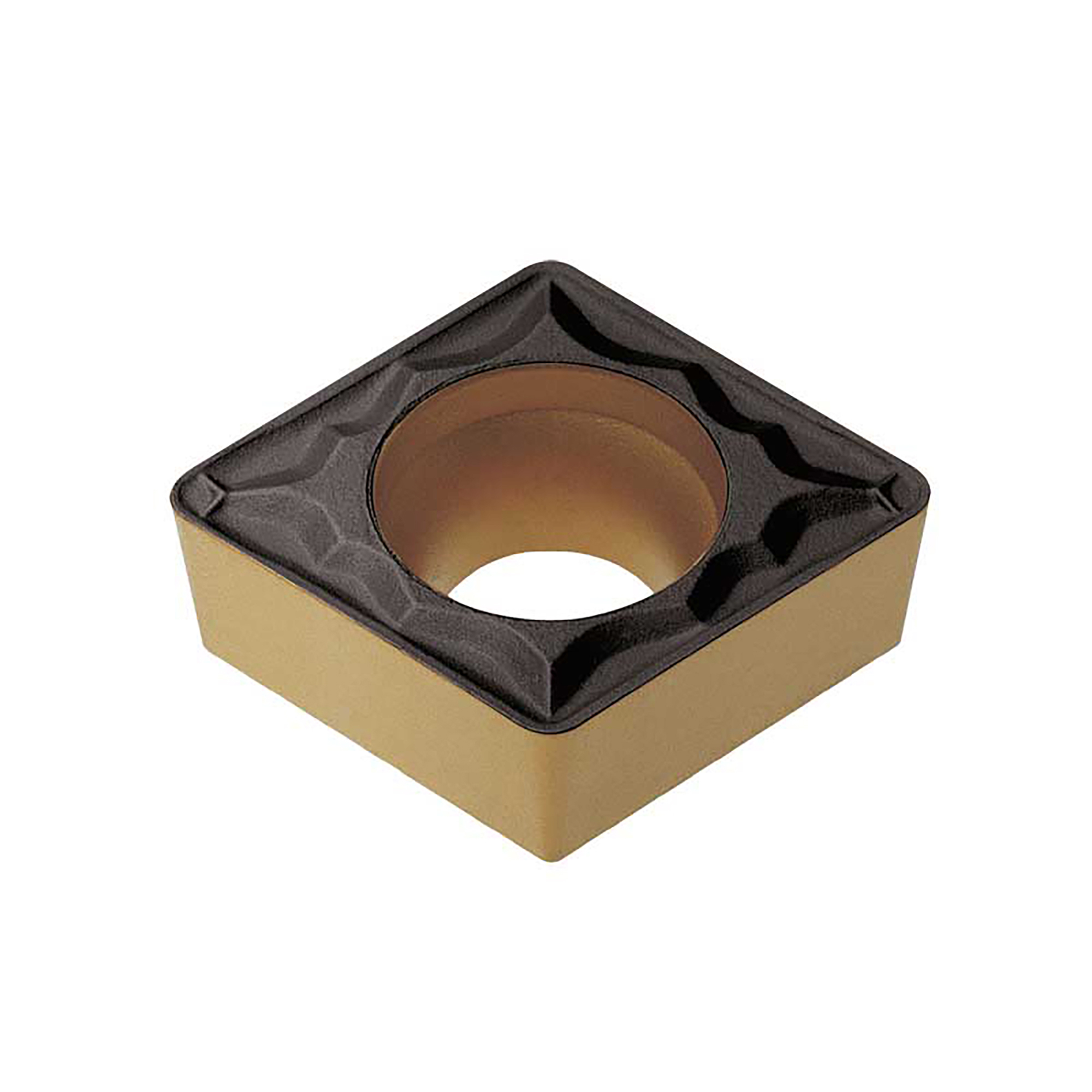

CCMT32.51-F2P PT15C Carbide Positive Turning Insert
Specifications
| Material | Carbide |
|---|---|
| Corner Radius (Inch) | 1/64" |
| Thickness (Inch) | 5/32" |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Relief Angle : 7<br>• Material Grade : C3, C6-C7<br>• Chip Breaker : F2P<br>• ISO Size : 09T304 |
| Long Description | • Insert Style: CCMT<br>• Insert Size: 32.51<br>• Material: Carbide<br>• Inscribed Circle (Inch): 3/8"<br>• Length (Decimal Inch): 0.382<br>• Thickness (Inch): 5/32"<br>• Corner Radius (Inch): 1/64"<br>• Manufacturer's Grade: PT15C<br>• Excellent chip control at wide range of cutting conditions. • Suitable for stainless steel cutting. |
| Length (Inch) | 0.382 |
| Insert Style | CCMT |
| Insert Size | 32.51 |
