Sowa Tool
153054

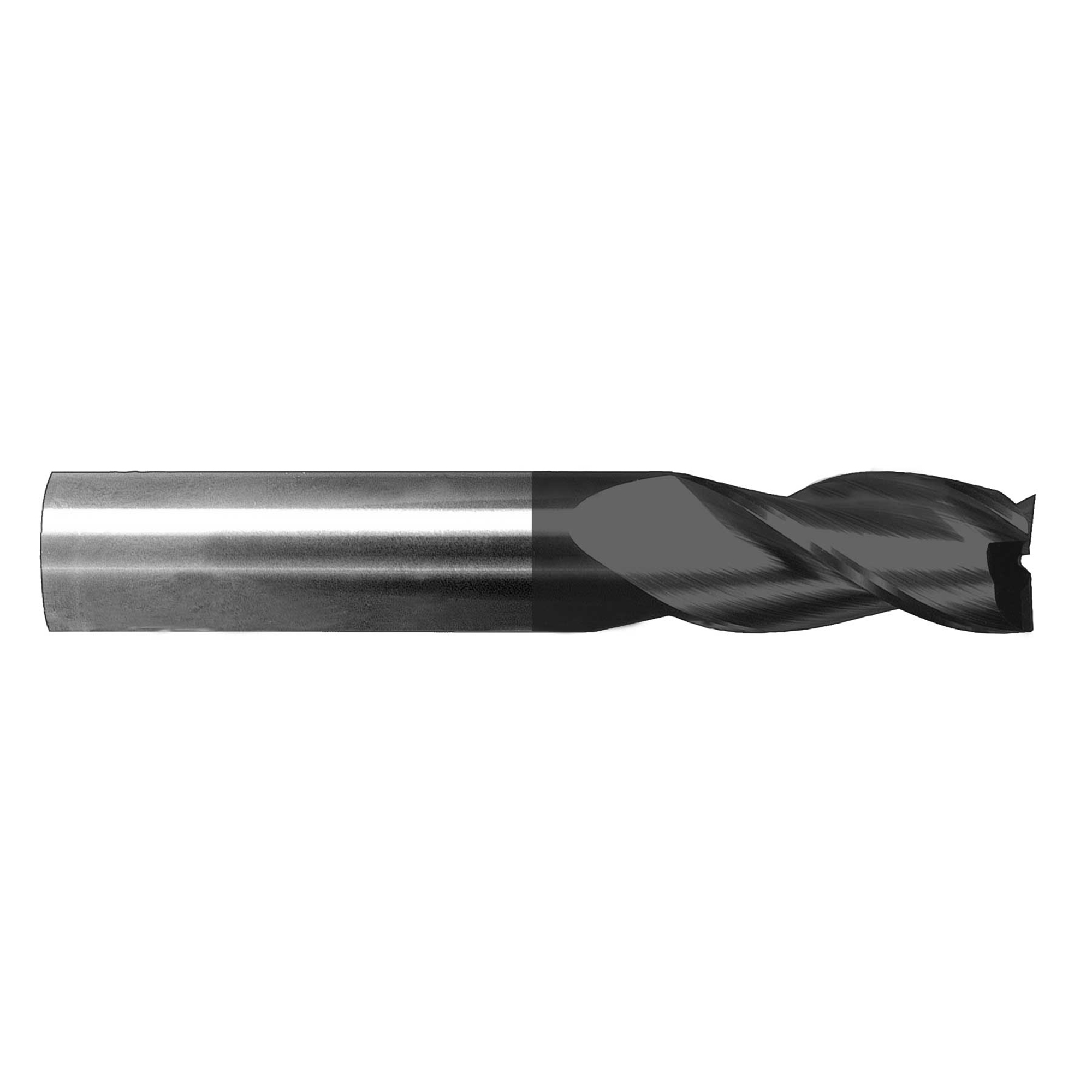

7/16" Diameter x 7/16" Shank 0.005" Radius 3-Flute Regular Length Corner Radius TiCN Coated Green Series Carbide End Mill
Specifications
| Length Of Cut (Inch) | 1" |
|---|---|
| Material | Solid Carbide |
| Corner Radius (Inch) | 0.005 |
| Overall Length (Inch) | 2-3/4" |
| Shank Diameter (Inch) | 7/16" |
| Coating/Finish | TiCN |
| Number Of Flutes | 3 |
| Cutting Direction | Right |
| Short Description | • Brand: Sowa High Performance Cutting Tools<br>• Center Cutting : Yes<br>• Flute Direction : Right<br>• Length Type : Regular |
| Long Description | • Mill Diameter (Inch): 7/16"<br>• End Type: Corner Radius<br>• Corner Radius (Decimal Inch): 0.005<br>• Number of Flutes: 3<br>• Material: Solid Carbide<br>• Finish/Coating: TiCN<br>• Length of Cut (Inch): 1"<br>• Shank Diameter (Inch): 7/16"<br>• Overall Length (Inch): 2-3/4"<br>• Cutting Direction: Right<br>• Variable Index: No<br>• Special geometry allows for high chip loads and feed rates <br>• 3 flute design excellent for slotting and profiling at high speeds <br>• Made from premium submicron grain carbide <br>• Cutting diameter tolerance +0.000/-0.002 |
| End Type | Corner Radius |
| Mill Diameter (Inch) | 7/16" |
