Sowa Tool
153416

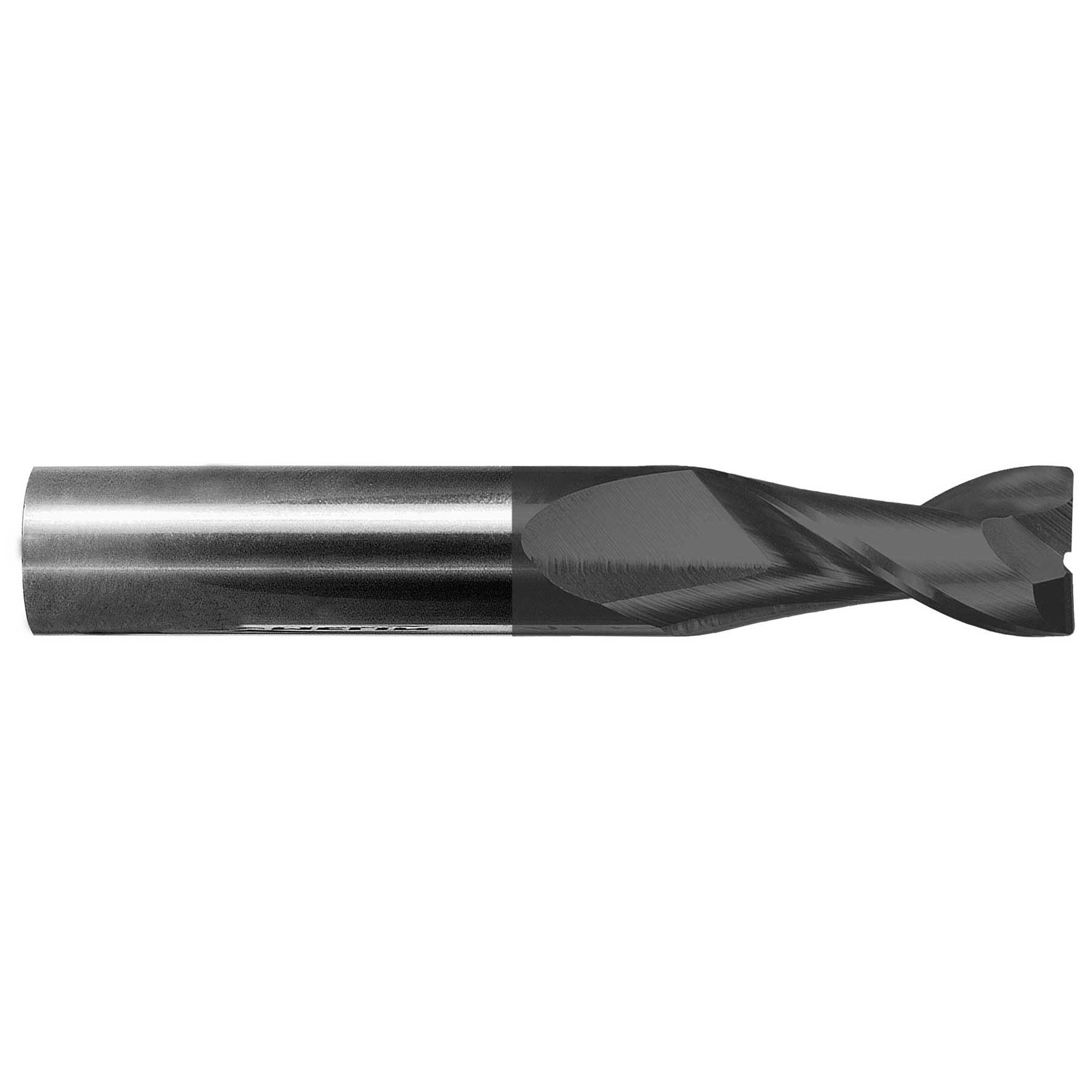

3/4" Diameter x 3/4" Shank 0.030" Radius 2-Flute Regular Length Corner Radius TiCN Coated Green Series Carbide End Mill
Specifications
| Length Of Cut (Inch) | 1-1/2" |
|---|---|
| Material | Solid Carbide |
| Corner Radius (Inch) | 0.03 |
| Overall Length (Inch) | 4" |
| Shank Diameter (Inch) | 3/4" |
| Coating/Finish | TiCN |
| Number Of Flutes | 2 |
| Cutting Direction | Right |
| Short Description | • Brand: Sowa High Performance Cutting Tools<br>• Center Cutting : Yes<br>• Flute Direction : Right<br>• Length Type : Regular |
| Long Description | • Mill Diameter (Inch): 3/4"<br>• End Type: Corner Radius<br>• Corner Radius (Decimal Inch): 0.03<br>• Number of Flutes: 2<br>• Material: Solid Carbide<br>• Finish/Coating: TiCN<br>• Length of Cut (Inch): 1-1/2"<br>• Shank Diameter (Inch): 3/4"<br>• Overall Length (Inch): 4"<br>• Cutting Direction: Right<br>• Variable Index: No<br>• Special geometry allows for high chip loads and feed rates<br>• Excellent for slotting and profiling at high speeds<br>• Made from premium submicron grain carbide<br>• Cutting diameter tolerance +0.000/-0.002 |
| End Type | Corner Radius |
| Mill Diameter (Inch) | 3/4" |
