Sowa Tool
162802

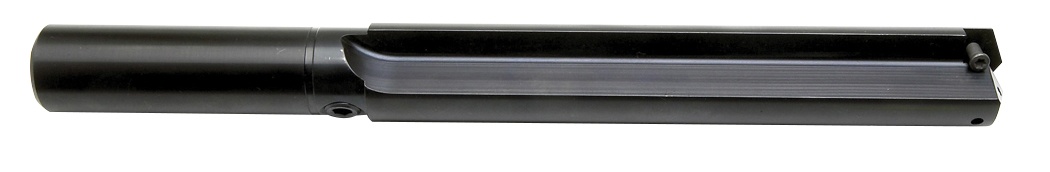

Series Z 3/4" Shank Standard Length Straight Shank Straight Flute Spade Drill
Specifications
| Diameter (Inch) | 7/16 |
|---|---|
| Overall Length (Inch) | 5-17/32 |
| Shank Diameter (Inch) | 3/4 |
| Shank Type | Straight |
| Type | Standard Length |
| Flute Length (Inch) | 3-5/32 |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Flute Length (Inch) : 3-5/32"<br>• Body Length (Inch) : 3-1/4"<br>• Pipe Tap : 1/8"<br>• Shank Length (Inch) : 2-3/8" |
| Long Description | • Series: Z<br>• Minimum Drill Diameter (Inch): 7/16"<br>• Maximum Drill Diameter (Inch): 1/2"<br>• Shank Type: Straight<br>• Shank Diameter (Inch): 3/4"<br>• Spade Drill Length : Standard<br>• Overall Length (Inch): 5-17/32"<br>• Maximum Drill Depth (Inch): 2-3/8"<br>• Flute Type: Straight Flute<br> |
| Unit Of Measure | Fractional |
| Flute Type | Straight |
| Series | Z |
| Shank Length (Fractional) | 2-3/8 |
| Body Length (Fractional) | 3-1/4 |
| Pipe Tap (Fractional) | 1/8 |
| Max. Drill Depth (Fractional) | 2-3/8 |
| Max. Drill Diameter (Fractional) | 1/2 |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Spade Drill Length | Standard |
