Sowa Tool
162841

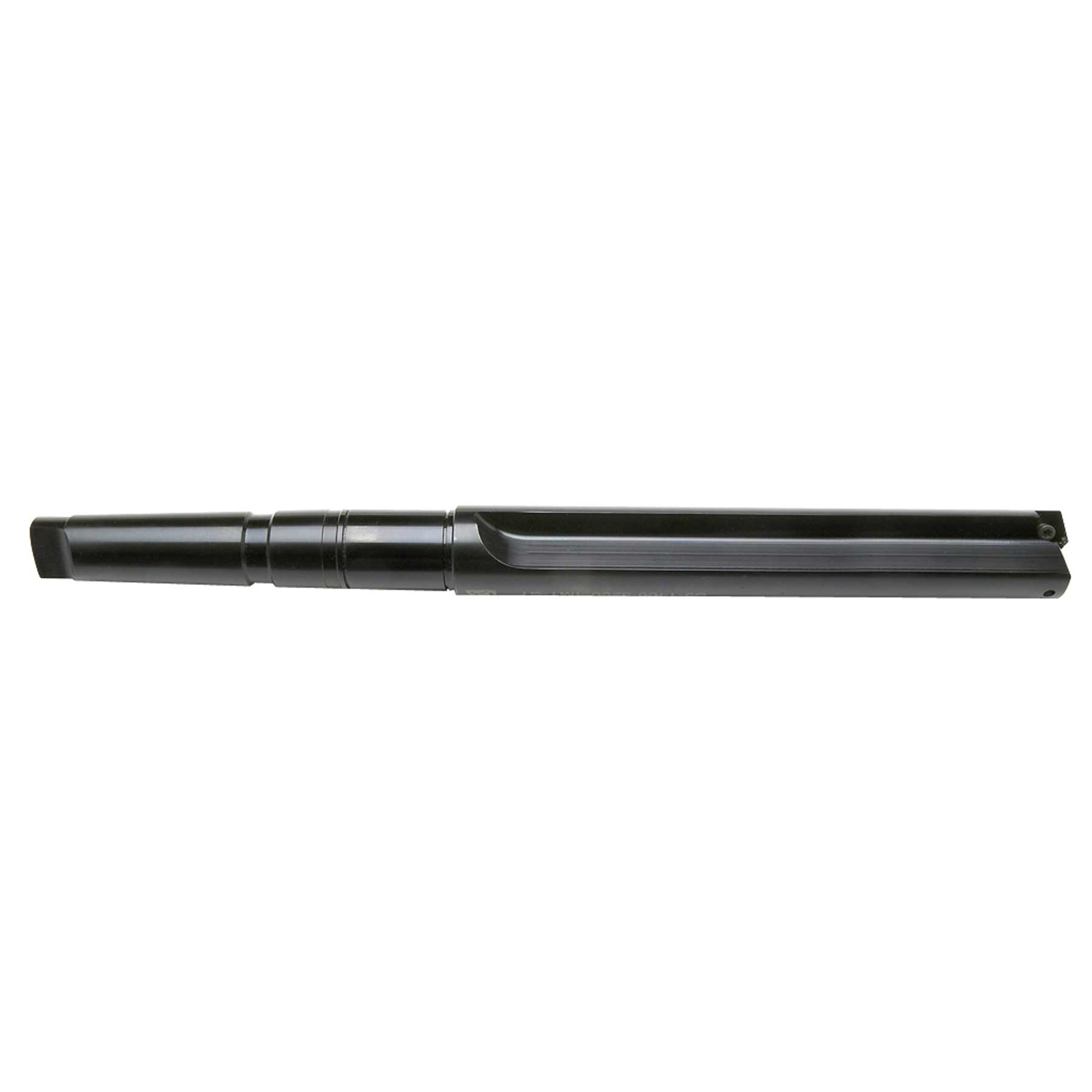

Series #1 MT3 Intermediate Length Taper Shank Straight Flute Spade Drill
Specifications
| Diameter (Inch) | 45/64 |
|---|---|
| Flute Length (Inch) | 5-7/8 |
| Overall Length (Inch) | 11-5/32 |
| Flute Type | Straight |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Flute Length (Inch) : 5-7/8"<br>• Body Length (Inch) : 7-39/64"<br>• Pipe Tap : 1/8" |
| Diameter | 45/64 Inch |
| Unit Of Measure | Fractional |
| Shank Type | Morse Taper |
| Long Description | • Series: 1<br>• Minimum Drill Diameter (Inch): 45/64"<br>• Maximum Drill Diameter (Inch): 15/16"<br>• Shank Type: Morse Taper<br>• Shank Taper Size: MT3<br>• Spade Drill Length : Intermediate<br>• Overall Length (Inch): 11-5/32"<br>• Maximum Drill Depth (Inch): 4-3/4"<br>• Flute Type: Straight Flute<br> |
| Series | 1 |
| Shank Taper Size | MT3 |
| Spade Drill Length | Intermediate |
| Max. Drill Depth (Fractional) | 4-3/4 |
| Max. Drill Diameter (Fractional) | 15/16 |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
