Sowa Tool
162845

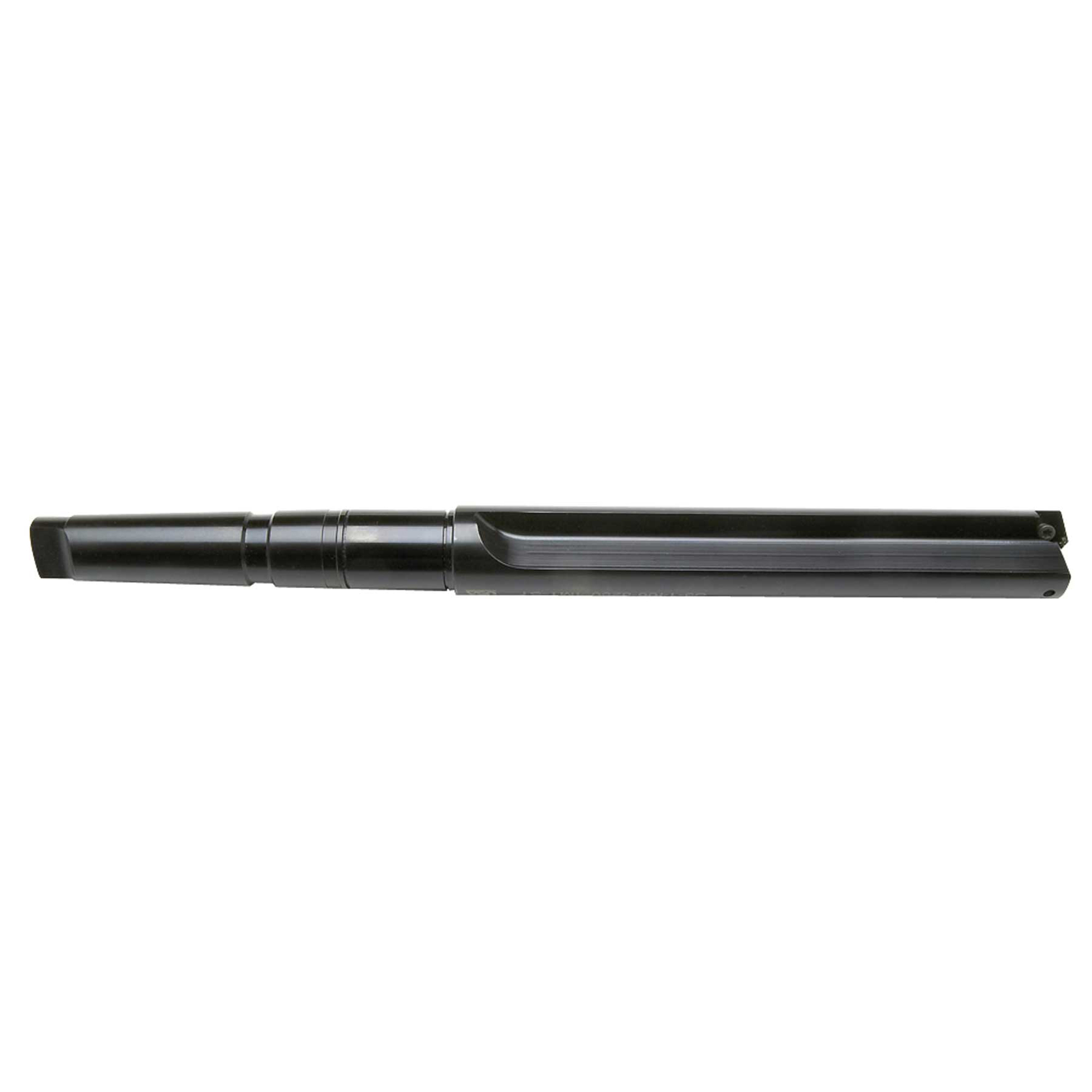

Series #2 MT4 Intermediate Length Taper Shank Straight Flute Spade Drill
Specifications
| Diameter (Inch) | 31/32 |
|---|---|
| Flute Length (Inch) | 6-1/2 |
| Overall Length (Inch) | 12-25/32 |
| Flute Type | Straight |
| Short Description | • Brand: Sowa Indexable Cutting Tools<br>• Flute Length (Inch) : 6-1/2"<br>• Body Length (Inch) : 8-19/64"<br>• Pipe Tap : 1/8" |
| Diameter | 31/32 Inch |
| Unit Of Measure | Fractional |
| Shank Type | Morse Taper |
| Long Description | • Series: 2<br>• Minimum Drill Diameter (Inch): 31/32"<br>• Maximum Drill Diameter (Inch): 1-3/8"<br>• Shank Type: Morse Taper<br>• Shank Taper Size: MT4<br>• Spade Drill Length : Intermediate<br>• Overall Length (Inch): 12-25/32"<br>• Maximum Drill Depth (Inch): 5-3/8"<br>• Flute Type: Straight Flute<br> |
| Series | 2 |
| Shank Taper Size | MT4 |
| Spade Drill Length | Intermediate |
| Max. Drill Depth (Fractional) | 5-3/8 |
| Max. Drill Diameter (Fractional) | 1-3/8 |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
